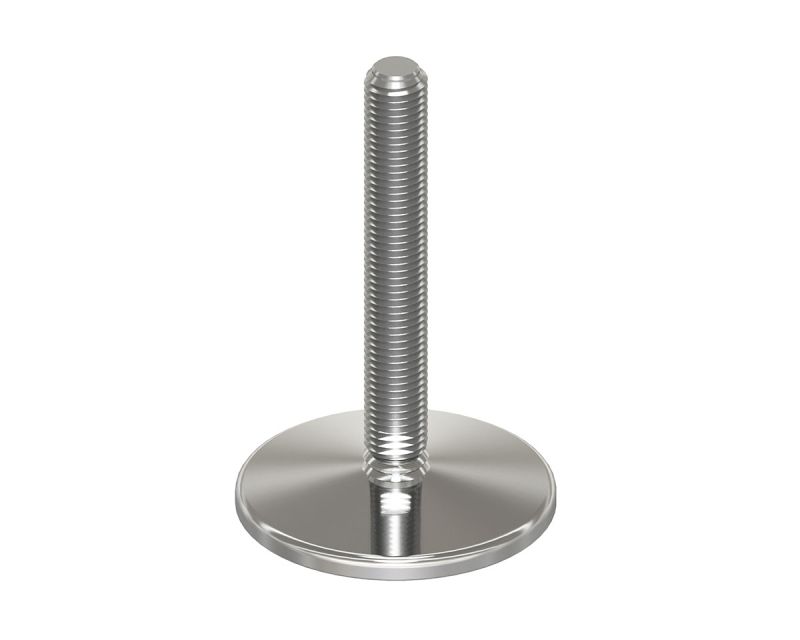

Solid SS Leveling 15° Hinged SS Ø 80, spindle M16 x 150
EAN
4061408148769
Type
45820128
Discover the Solid SS Leveling with a 15° hinge, designed for precision alignment in industrial applications. With a robust stainless steel design and a load capacity of up to 35,000 N, it ensures durable stability.
| Quantity | Price |
|---|---|
| From 1 |
€26.04*
|
| From 13 |
€24.46*
|
| From 25 |
€22.88*
|
| From 50 |
€21.78*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 15° |
| Hygiene: | No |

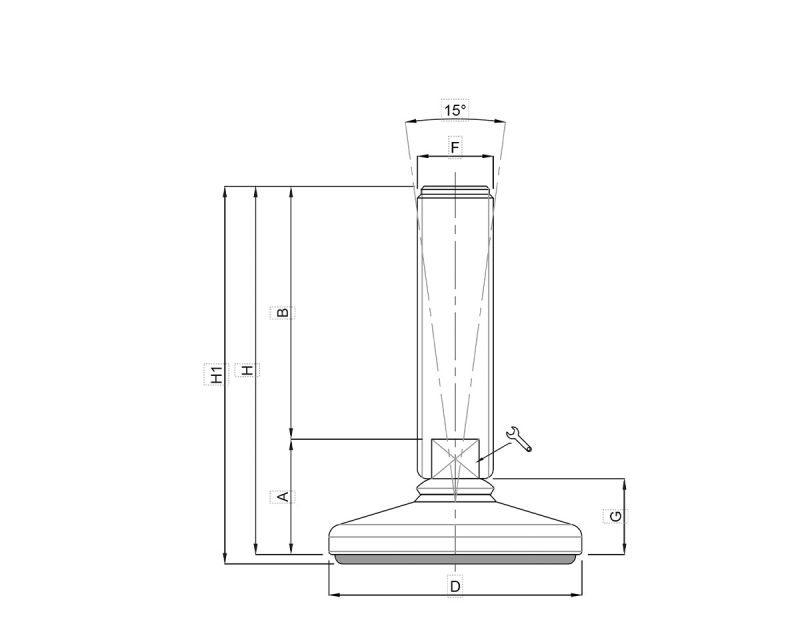

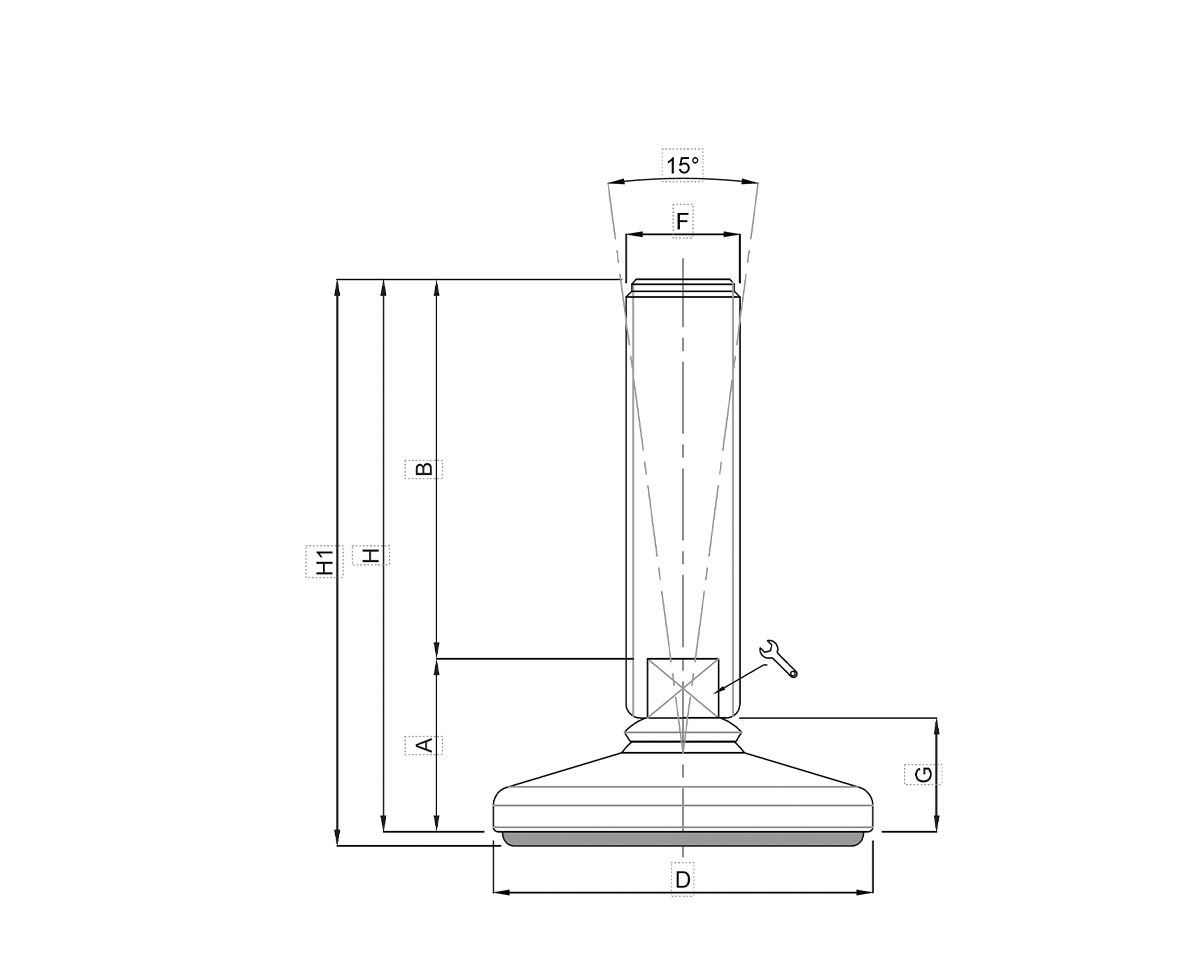

Technical drawing
SOLID stainless steel Levelling, Base Ø80, M16 x 150, total height 264 mm, 15° angel, wrench 13 mm, loads up to 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
