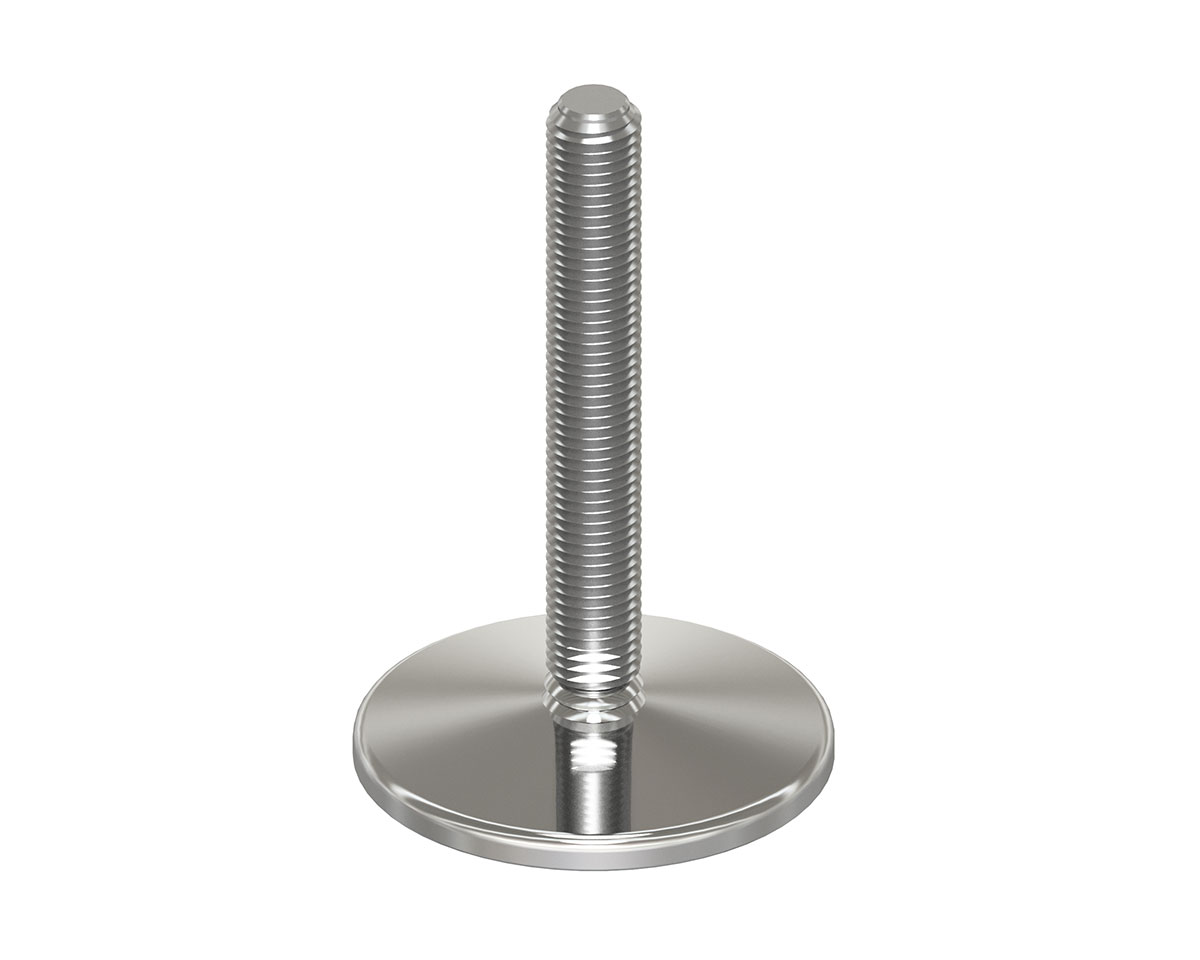

Solid SS Leveling 15° Hinged SS Ø 60, spindle M16 x 100
EAN
4061408148738
Type
45820024
Optimize your engineering projects with our Solid SS Leveling Feet. Built from stainless steel, these robust components feature a 15° angled hinge, accommodating loads up to 30,000 N for maximum stability.
| Quantity | Price |
|---|---|
| From 1 |
€16.78*
|
| From 13 |
€15.76*
|
| From 25 |
€14.75*
|
| From 50 |
€14.03*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 15° |
| Hygiene: | No |

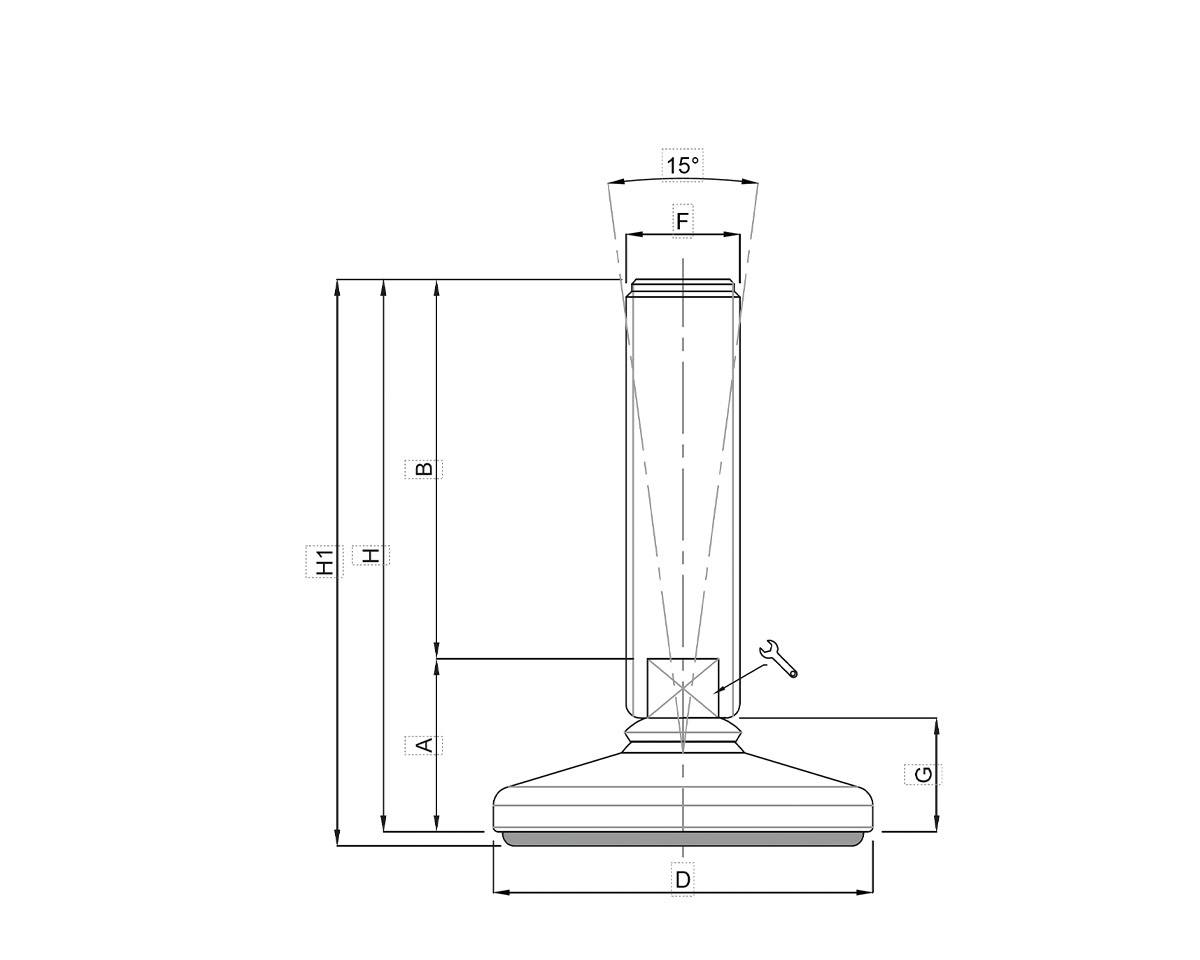

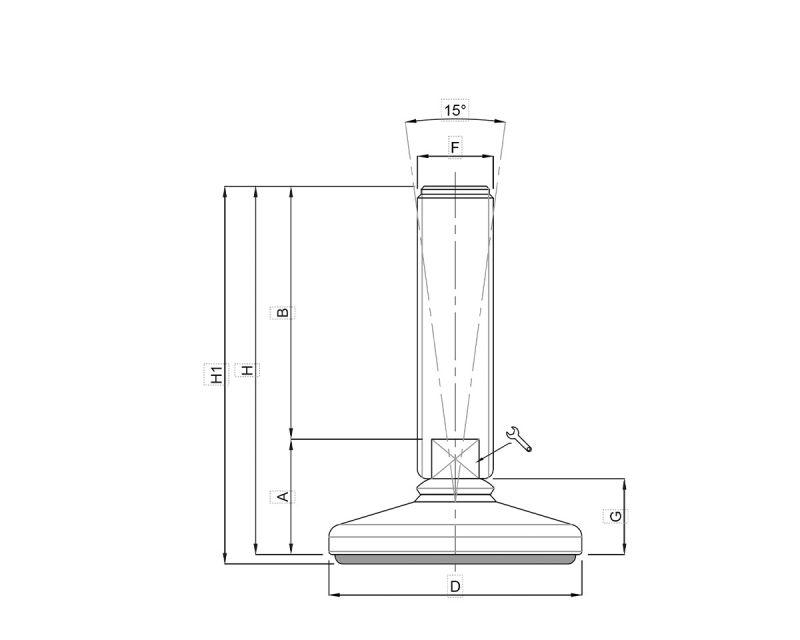

Technical drawing
SOLID stainless steel Levelling, Base Ø 60, M16 x 100, total height 264 mm, 15° angel, wrench 13 mm, loads up to 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
