Roller chain 80-2 ANSI, 1" x 5/8", G8, Duplex, DIN 8188, VPE 3,05 m
EAN
4061408067879
Type
302RS80-2
Discover the RS 80 A 1 x 5/8 roller chain, a robust Duplex design compliant with DIN 8188. With a pitch of 25.4 mm and optimized dimensions for enhanced performance, it’s the ideal choice for demanding engineering applications. Packaged in 3.05 m length, including connection link.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€346.09*
|
€113.47* / 1 metres |
| From 3 |
€340.55*
|
€111.66* / 1 metres |
| From 10 |
€337.78*
|
€110.75* / 1 metres |
| From 20 |
€332.24*
|
€108.93* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
Accessories

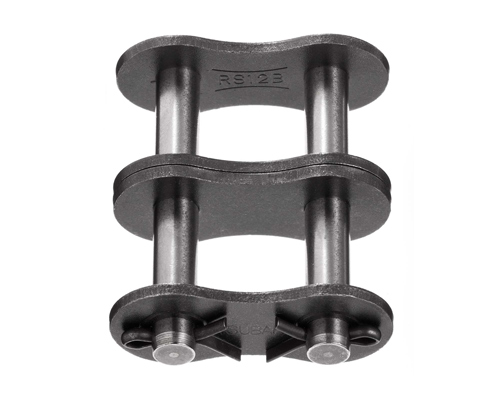

Reinforced cotter pin conn.link 80-2 ANSI, 1" x 5/8", G8 Duplex, DIN 8188
From
€10.88*
Type No.:
312RS80-2
Product properties
| Product family: | Steel |
| Abbreviation: | RS 80 A 1 x 5/8 |
| DIN standard: | DIN 8188 |
| Type: | Duplex |
| Pitch/Pitch (mm): | 25,40 |
| Roll Ø (mm): | 15,88 |
| Inner width (mm): | 15,88 |
Drawing
Roller chain 80-2 ANSI, 1" x 5/8", G8, Duplex version, DIN 8188, pitch 25,4 mm, inner width 15,88 mm, roller-Ø 15,88 mm, TSUBAKI, package 3,05 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
