Roller chain 12 B-2, 3/4" x 7/16", Standard, Duplex, straight links, DIN 8187, pack 5 M.
EAN
4061408033706
Type
301RF12B2M
Optimize your machinery with the RS 12 B 3/4 x 7/16 Duplex Roller Chain. Engineered to DIN 8187 standards, it offers superior performance, durability, and a reliable connection for your applications.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€322.69*
|
€64.54* / 1 metres |
| From 3 |
€317.52*
|
€63.50* / 1 metres |
| From 10 |
€314.94*
|
€62.99* / 1 metres |
| From 20 |
€309.78*
|
€61.96* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
Accessories

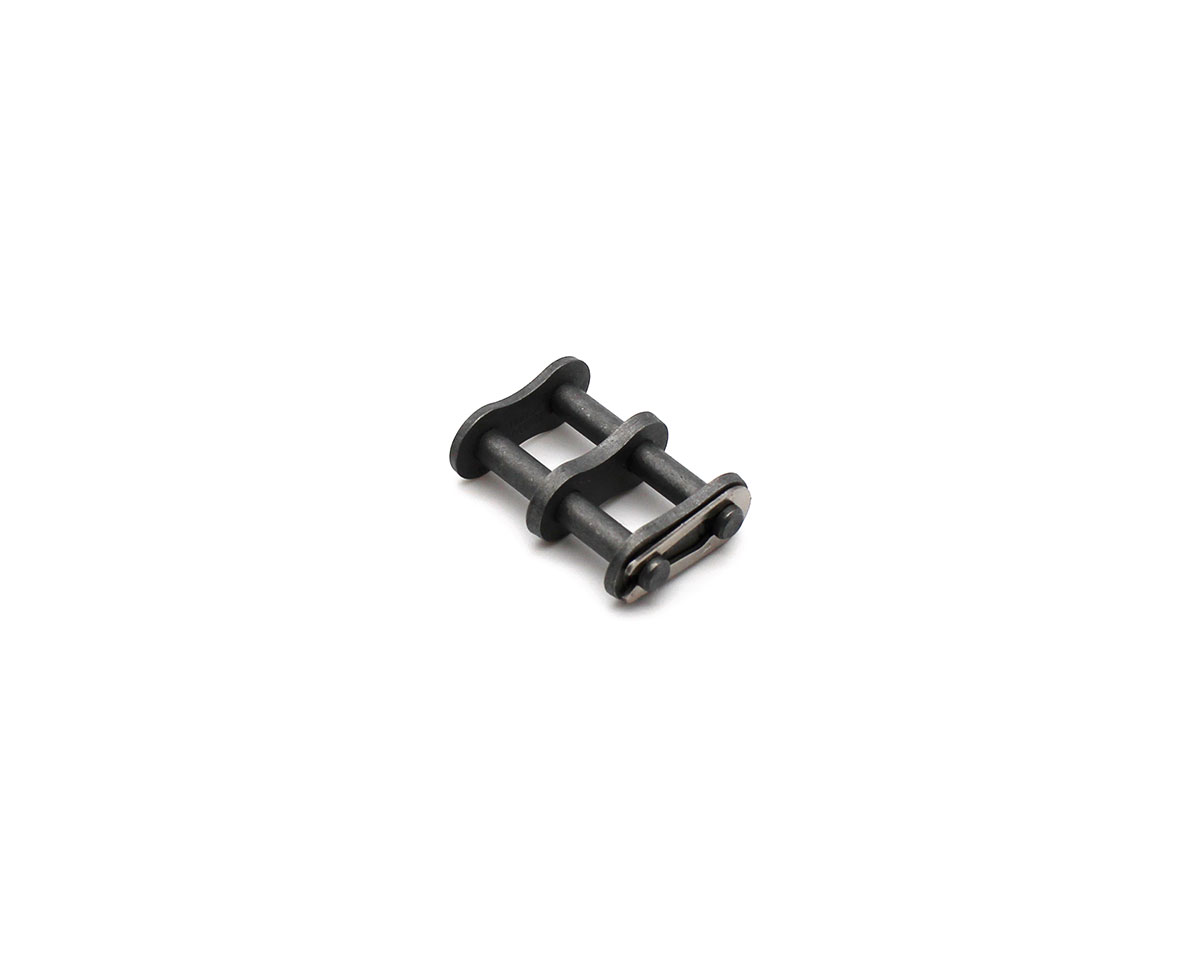

Reinforced spring clip conn.link 12 B-2, 3/4" x 7/16", Standard, Duplex, DIN 8187
From
€7.08*
Type No.:
311RF12B2
Product properties
| Product family: | Steel |
| Abbreviation: | RS 12 B 3/4 x 7/16 |
| Roll Ø (mm): | 12,07 |
| Type: | Duplex |
| Inner width (mm): | 11,68 |
| Pitch/Pitch (mm): | 19,05 |
| DIN standard: | DIN 8187 |
Drawing

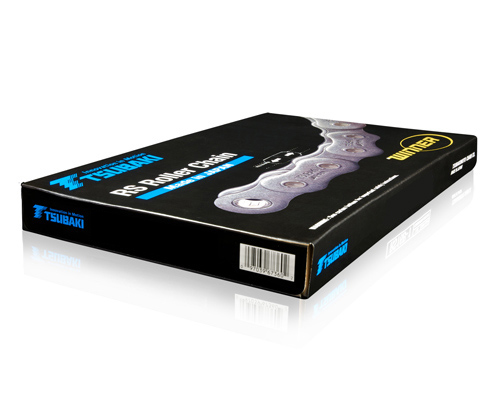

Roller chain 12 B-2, 3/4" x 7/16", Standard steel chain, Duplex version, DIN 8187, straight links, pitch 19,05 mm, inner width 11,68 mm, roller-Ø 12,07 mm, TSUBAKI, package 5 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
