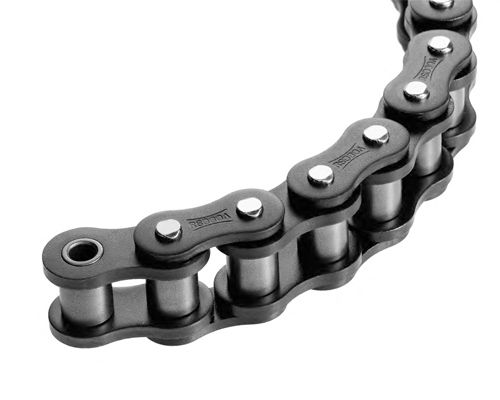

Roller chain 16 B-1, 1" x 11/16", Standard, straight links, DIN 8187, pack 5 M.
EAN
4061408007776
Type
301RF16B1M
Optimize your mechanical systems with the RS 16 B 1 x 11/16 roller chain. Made from high-quality steel and compliant with DIN 8187, this simplex chain offers exceptional durability and efficiency for various engineering applications.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€285.84*
|
€57.17* / 1 metres |
| From 3 |
€281.26*
|
€56.25* / 1 metres |
| From 10 |
€278.98*
|
€55.80* / 1 metres |
| From 20 |
€274.40*
|
€54.88* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
Accessories

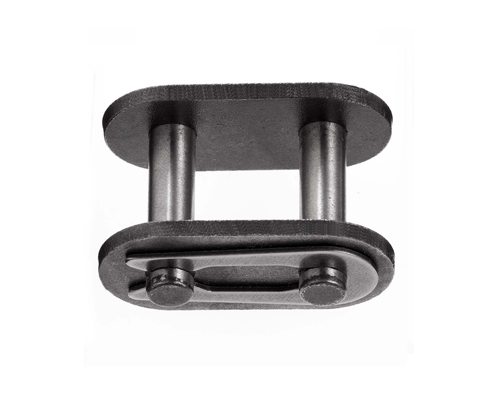

Reinforced spring clip conn.link 16 B-1, 1" x 11/16"; Standard, DIN 8187
From
€10.93*
Type No.:
311RF16B1
Product properties
| Product family: | Steel |
| Abbreviation: | RS 16 B 1 x 11/16 |
| Roll Ø (mm): | 15,88 |
| Type: | Simplex |
| Inner width (mm): | 17,02 |
| Pitch/Pitch (mm): | 25,40 |
| DIN standard: | DIN 8187 |

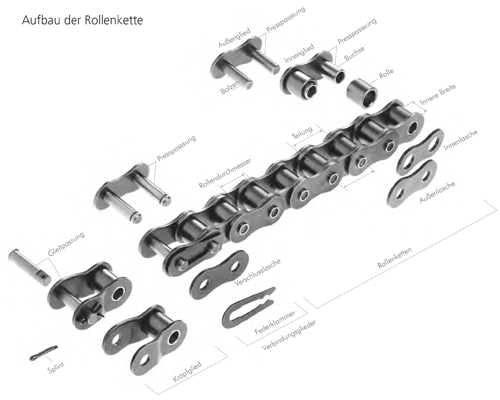

Drawing
Roller chain 16 B-1, 1" x 11/16", Standard steel chain, DIN 8187, straight links, pitch 25,4 mm, inner width 17,02 mm, roller-Ø 15,88 mm, TSUBAKI, package 5 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
