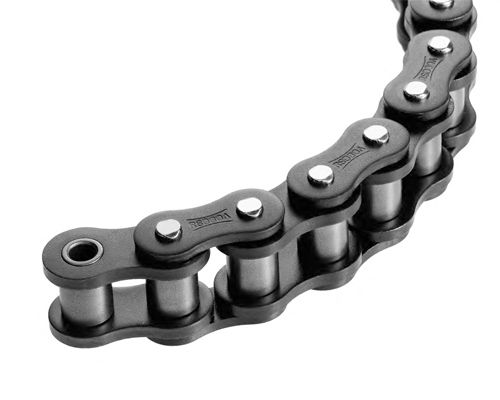

Roller chain 35-1 ANSI, 3/8" x 3/16", G8, DIN 8188, pack 3,05 M.
EAN
4061408136582
Type
302RS35-1M
Discover the TSUBAKI RS 35 A chain, a high-quality simplex roller chain compliant with DIN 8188. With a pitch of 9.53 mm and durable construction, this 3.05 m package ensures reliable performance for engineers and manufacturers.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€57.46*
|
€18.84* / 1 metres |
| From 3 |
€56.54*
|
€18.54* / 1 metres |
| From 10 |
€56.08*
|
€18.39* / 1 metres |
| From 20 |
€55.16*
|
€18.09* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
PayPal
Skip product gallery
Accessories

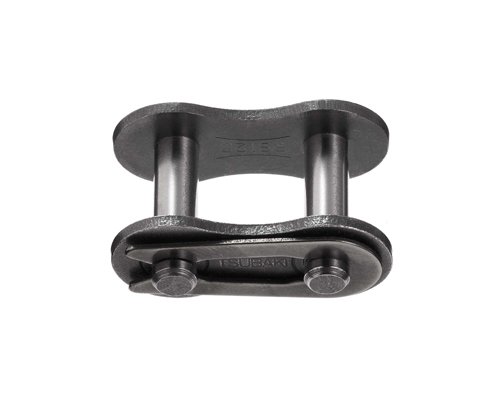

Reinforced spring clip conn.link 35-1 ANSI, 3/8" x 3/16", G8, DIN 8188
From
€1.41*
Type No.:
312RS35-1
Product properties
| Product family: | Steel |
| Abbreviation: | RS 35 A 3/8 x 3/16 |
| DIN standard: | DIN 8188 |
| Type: | Simplex |
| Pitch/Pitch (mm): | 9,53 |
| Roll Ø (mm): | 5,08 |
| Inner width (mm): | 4,78 |

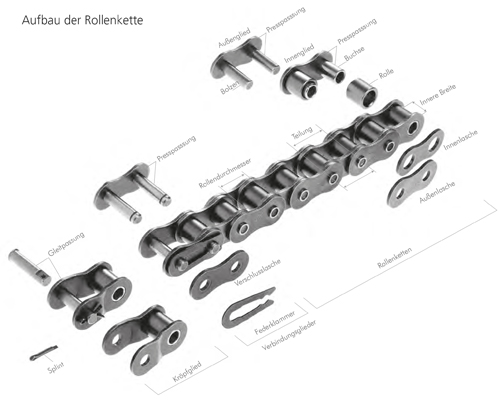

Drawing
Roller chain 35-1 ANSI, 3/8" x 3/16", G8, DIN 8188, pitch 9,53 mm, inner width 4,78 mm, roller-Ø 5,08 mm, TSUBAKI, package 3,05 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
