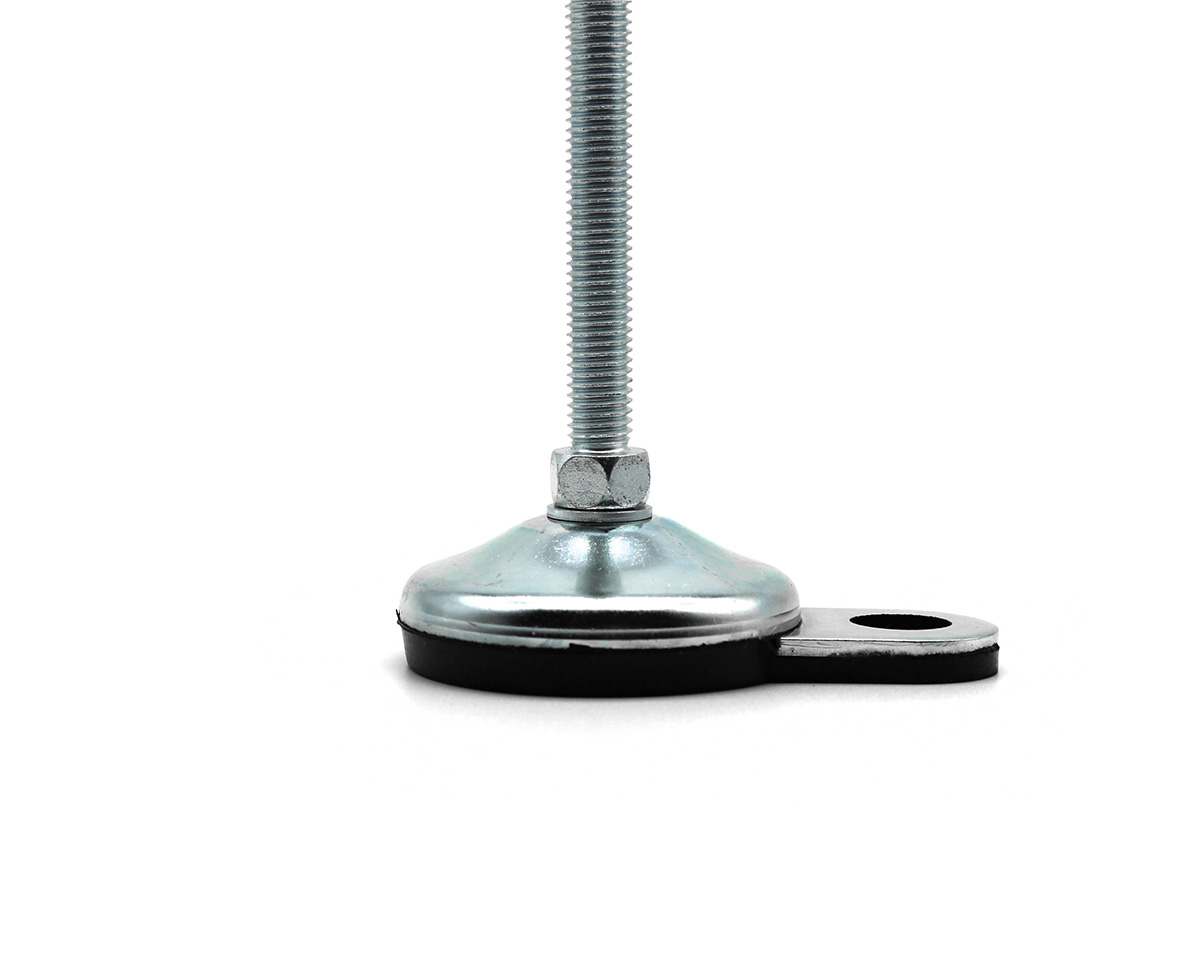

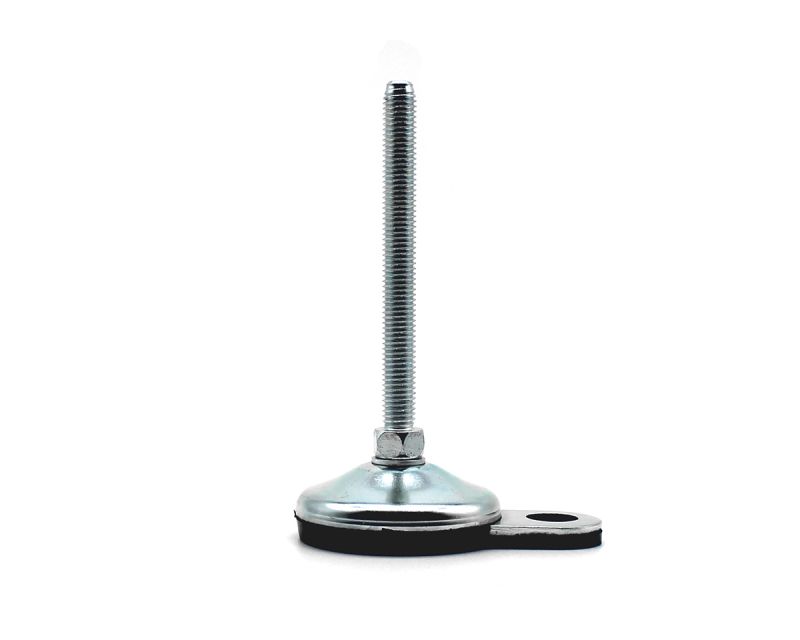

Levelling foot VULCANIZED galvanized steel, Ø 60 mm, M20 x 200 mm, Lug, NBR
Experience superior stability with our vulcanized galvanized steel leveling foot, featuring a 60 mm diameter and a robust M20 x 200 mm screw. Designed for static loads up to 7,000 N, its articulated screw accommodates a 10° angle, ensuring precise alignment while the NBR anti-slip feature enhances grip. Ideal for your engineering and manufacturing needs.
| Quantity | Price |
|---|---|
| From 1 |
€14.82*
|
| From 5 |
€14.19*
|
| From 15 |
€13.74*
|
| From 50 |
€13.56*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | No |
