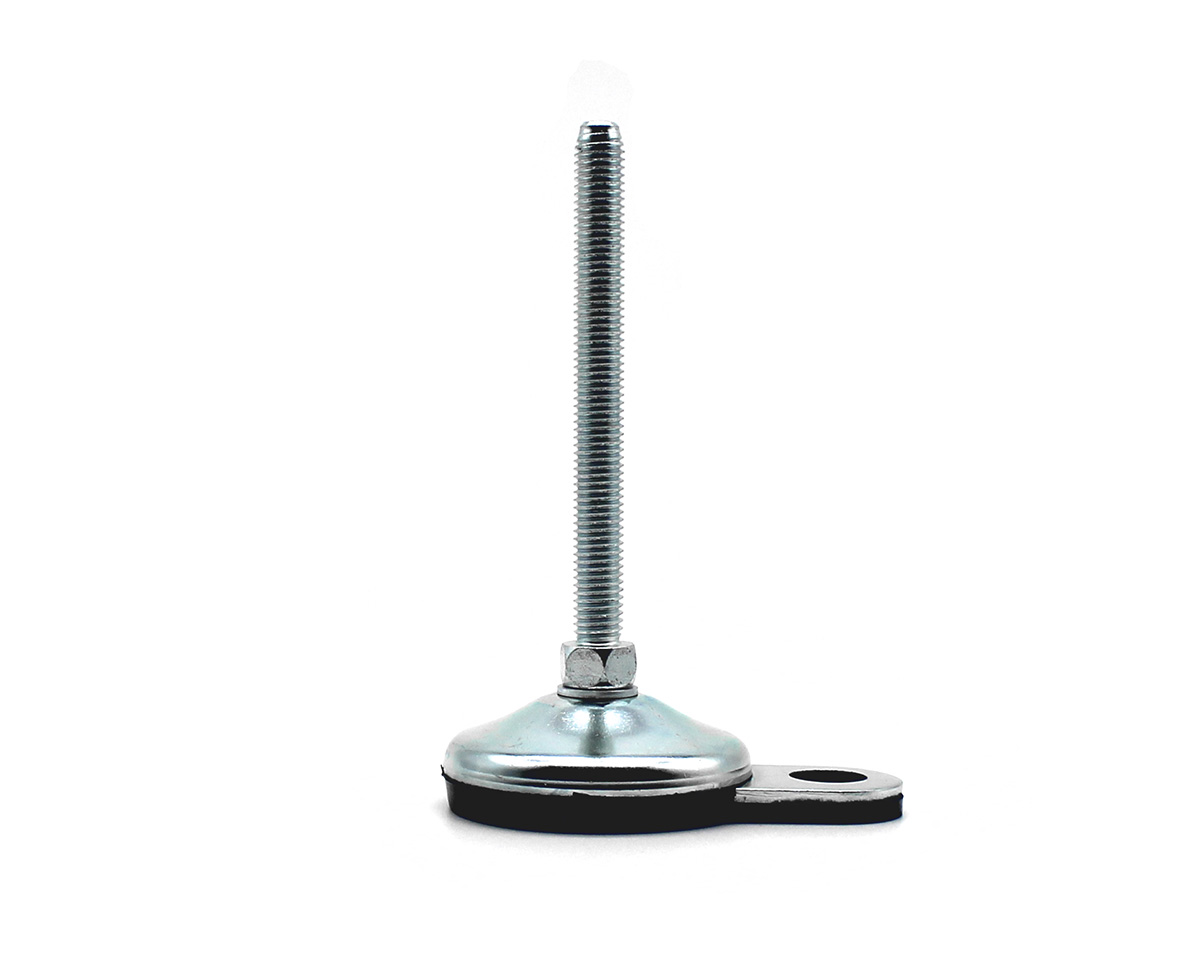

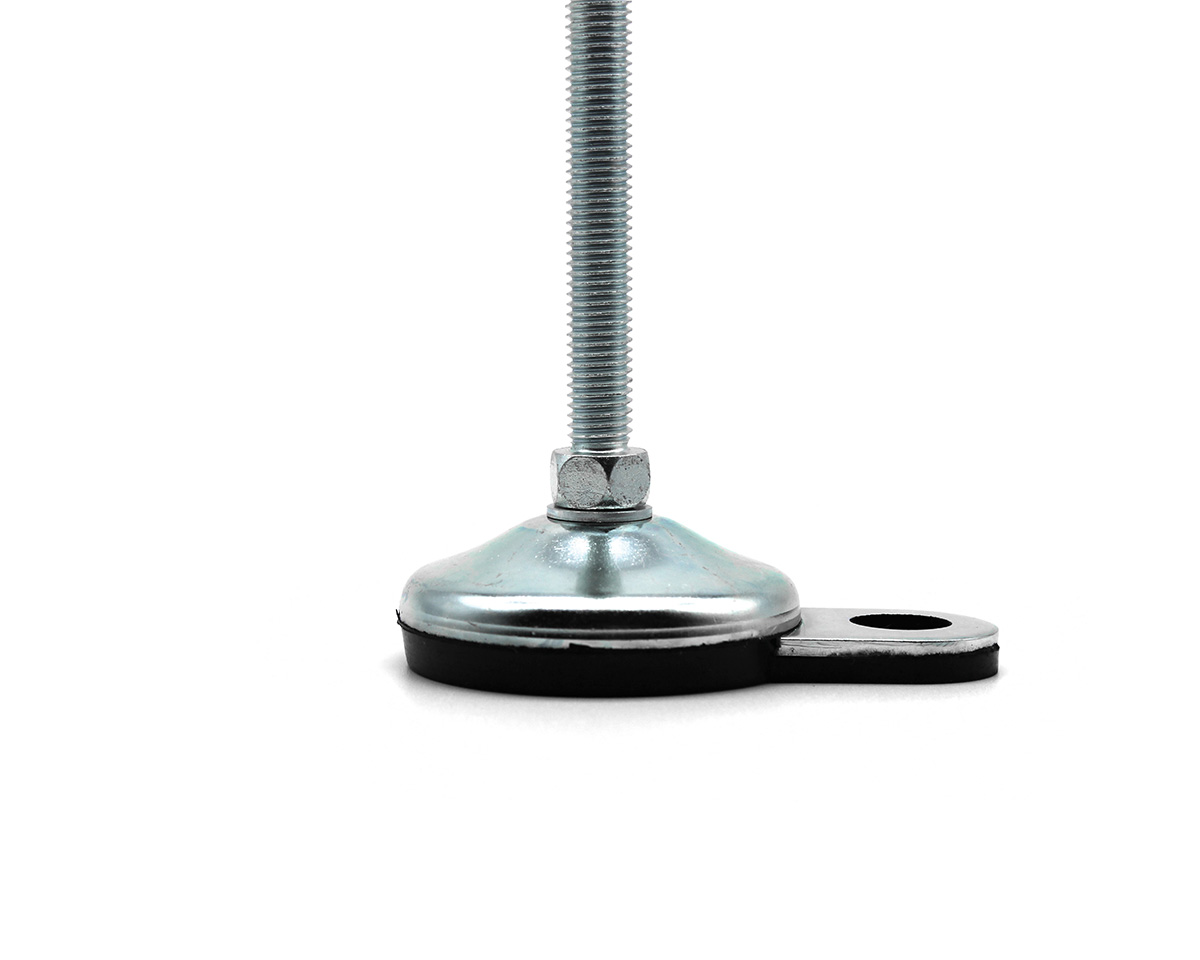

Levelling foot VULCANIZED galvanized steel, Ø 60 mm, M16 x 200 mm, Lug, NBR
Discover our VULCANIZED leveling foot, made from galvanized steel with a 60 mm diameter. Offering exceptional stability with a static load capacity of 7,000 N, this adjustable solution features an articulated screw for 10° angling, ensuring optimal performance even on uneven surfaces.
| Quantity | Price |
|---|---|
| From 1 |
€12.95*
|
| From 5 |
€12.40*
|
| From 15 |
€12.01*
|
| From 50 |
€11.85*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
