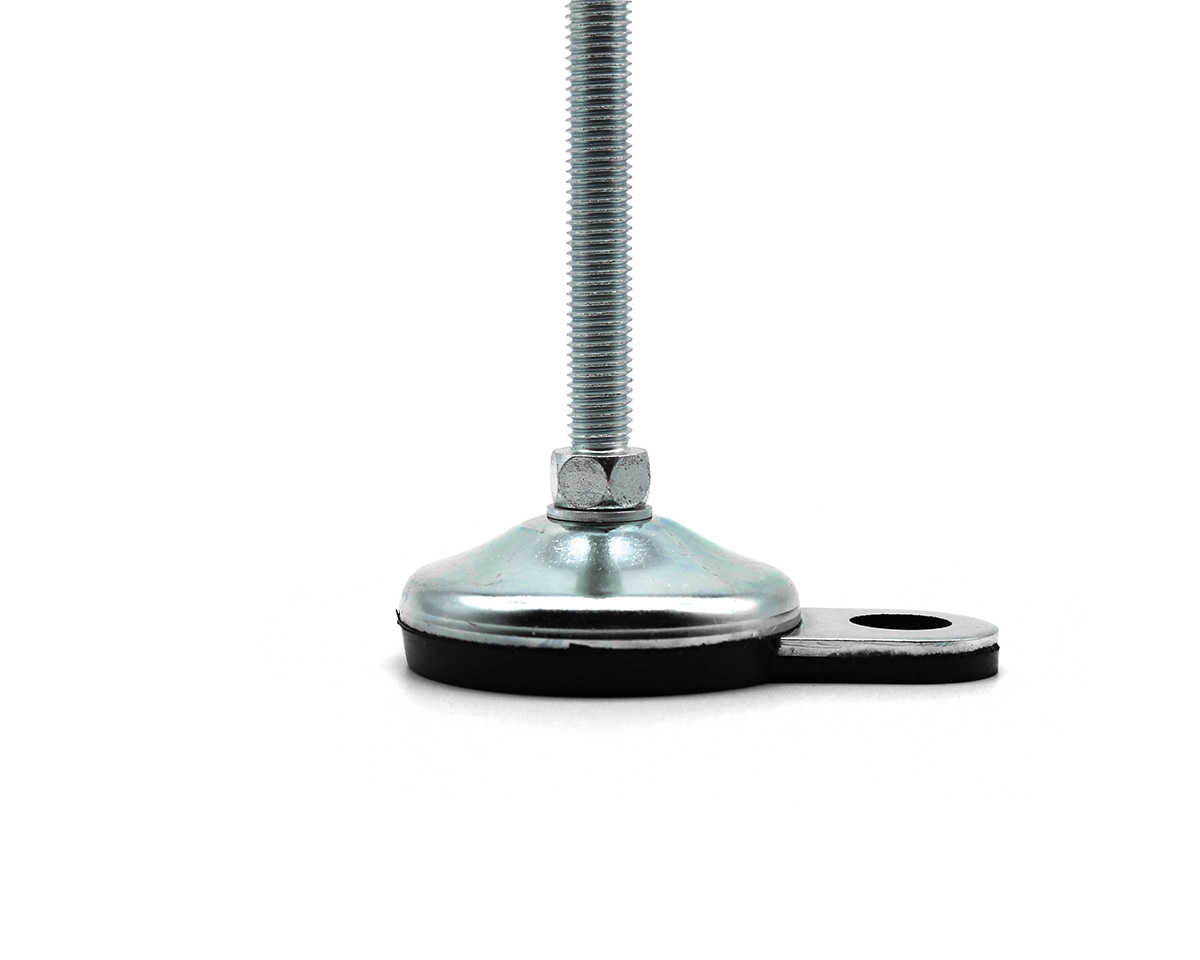

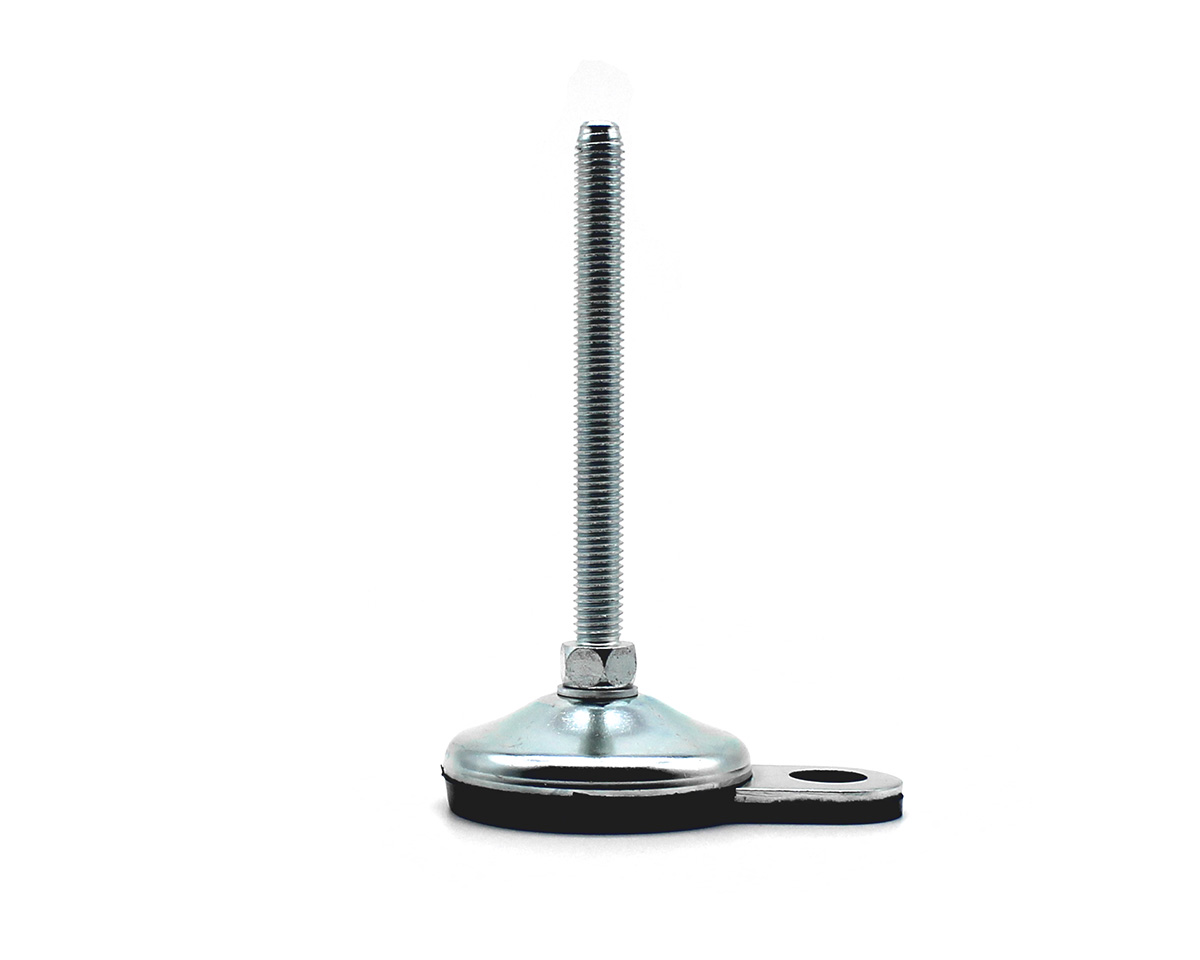

Levelling foot VULCANIZED galvanized steel, Ø 60 mm, M16 x 75 mm, Lug, NBR
Discover our VULCANIZED Levelling Foot, featuring a robust galvanized steel design. With a 60 mm diameter and a static load capacity of 7,000 N, it offers exceptional stability and anti-slip performance, making it ideal for precise leveling applications.
| Quantity | Price |
|---|---|
| From 1 |
€11.04*
|
| From 5 |
€10.57*
|
| From 15 |
€10.24*
|
| From 50 |
€10.10*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
