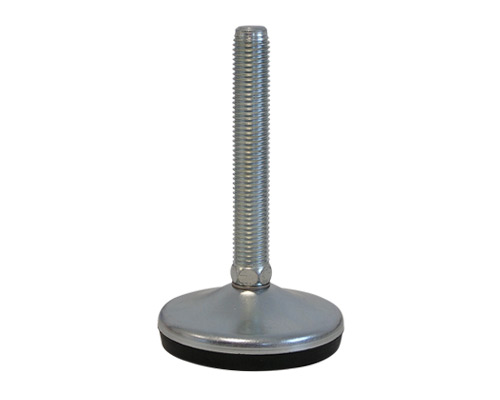

Levelling foot VULCANIZED galvanized steel, Ø 80 mm, M16 x 150 mm, NBR
Introducing our VULCANIZED Galvanized Steel Levelling Foot, designed for stability and durability. With an 80 mm diameter and a static load capacity of 10,000 N, it ensures precise leveling in challenging environments, featuring an articulated screw angle of 10° for optimal adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€12.67*
|
| From 5 |
€12.13*
|
| From 15 |
€11.75*
|
| From 50 |
€11.60*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
