Levelling foot ECO30 PA, Ø 123 mm, M30 x 100 mm Steel, Drills, NBR

EAN 4061408100965

Type 45818645

Discover the ECO30 Levelling Foot: engineered for stability with a 123 mm diameter, 30° articulation, and a robust static load capacity of 25,000 N. Ideal for precise applications.

Durable polyamide construction ensures long-lasting performance in various environments
High load capacity of 25,000 N, suitable for heavy machinery and equipment
Articulated screw design enables a 30° adjustment angle for versatile leveling
Galvanized steel spindle provides corrosion resistance and strength
Equipped with two bore holes (Ø 12.5 mm) for secure floor mounting

Quantity	Price
From 1	€10.81*
From 5	€10.35*
From 15	€8.91*
From 50	€8.45*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€10.81* / piece

Our payment methods:

Accessories

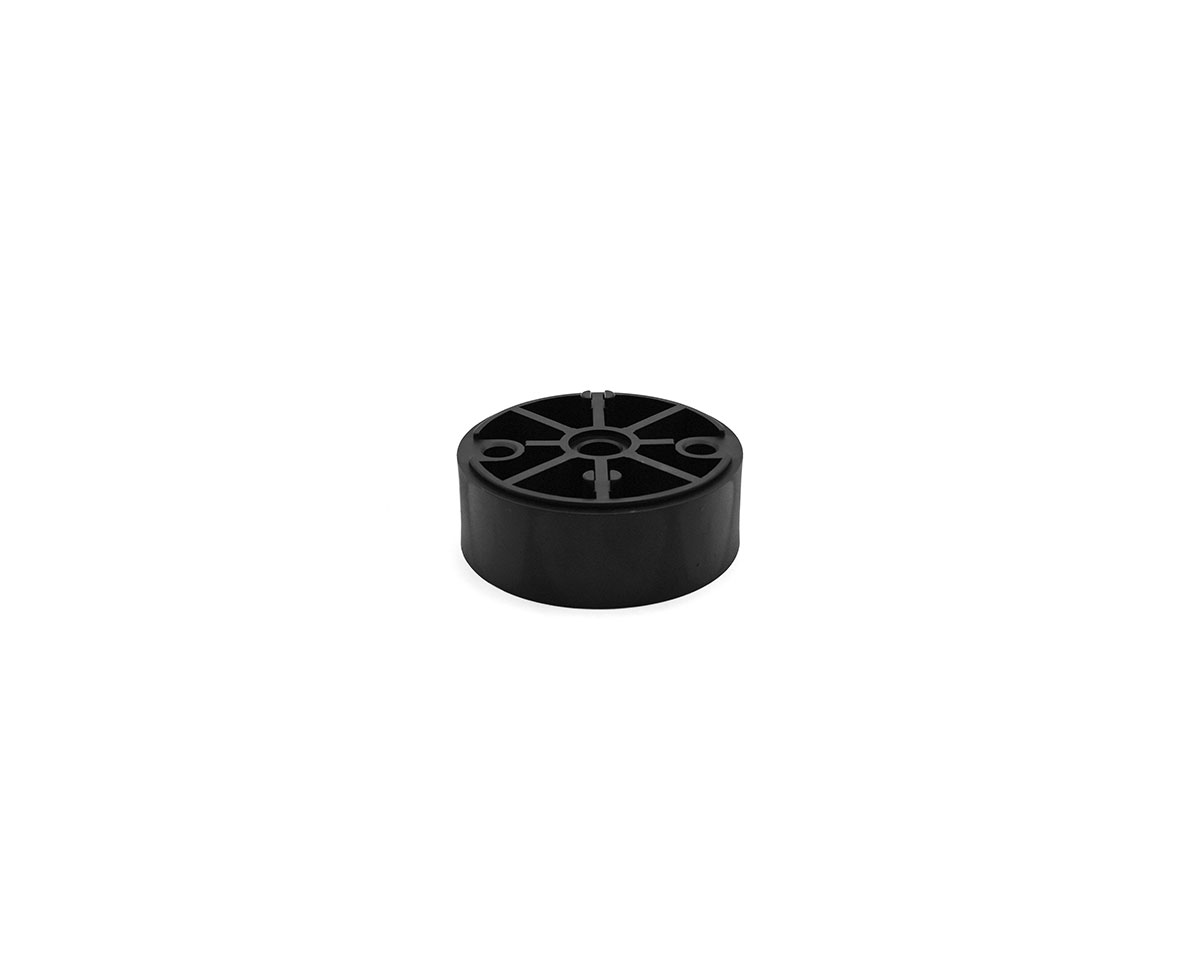

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	30
Spindle length (mm):	100
Balancing angle:	30°

Product description

Levelling foot ECO30 Polyamide, Ø 123 mm, M30 x 100 mm, Galvanized steel, Total height 142 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
