Levelling foot PA, Ø 123 mm, M24 x 200 mm Steel, Drills

EAN 4061408095193

Type 45812904

Enhance stability with our Levelling Foot PA, featuring a robust galvanized steel spindle. Designed for precise adjustments, it supports static loads up to 45,000 N.

Durable polyamide leveling foot with a diameter of 123 mm for enhanced stability and longevity.
High-strength galvanized steel spindle (M24 x 200 mm) provides robust support and resistance to corrosion.
Articulated screw design allows for a compensation angle of up to 4°, ensuring precise leveling adjustments.
Equipped with two bore holes (Ø 12.5 mm) for secure ground attachment, accommodating various installation requirements.
Capable of supporting static loads up to 45,000 N, making it suitable for heavy-duty applications in engineering and manufacturing.

Quantity	Price
From 1	€10.66*
From 5	€10.21*
From 15	€8.79*
From 50	€8.33*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€10.66* / piece

Our payment methods:

Accessories

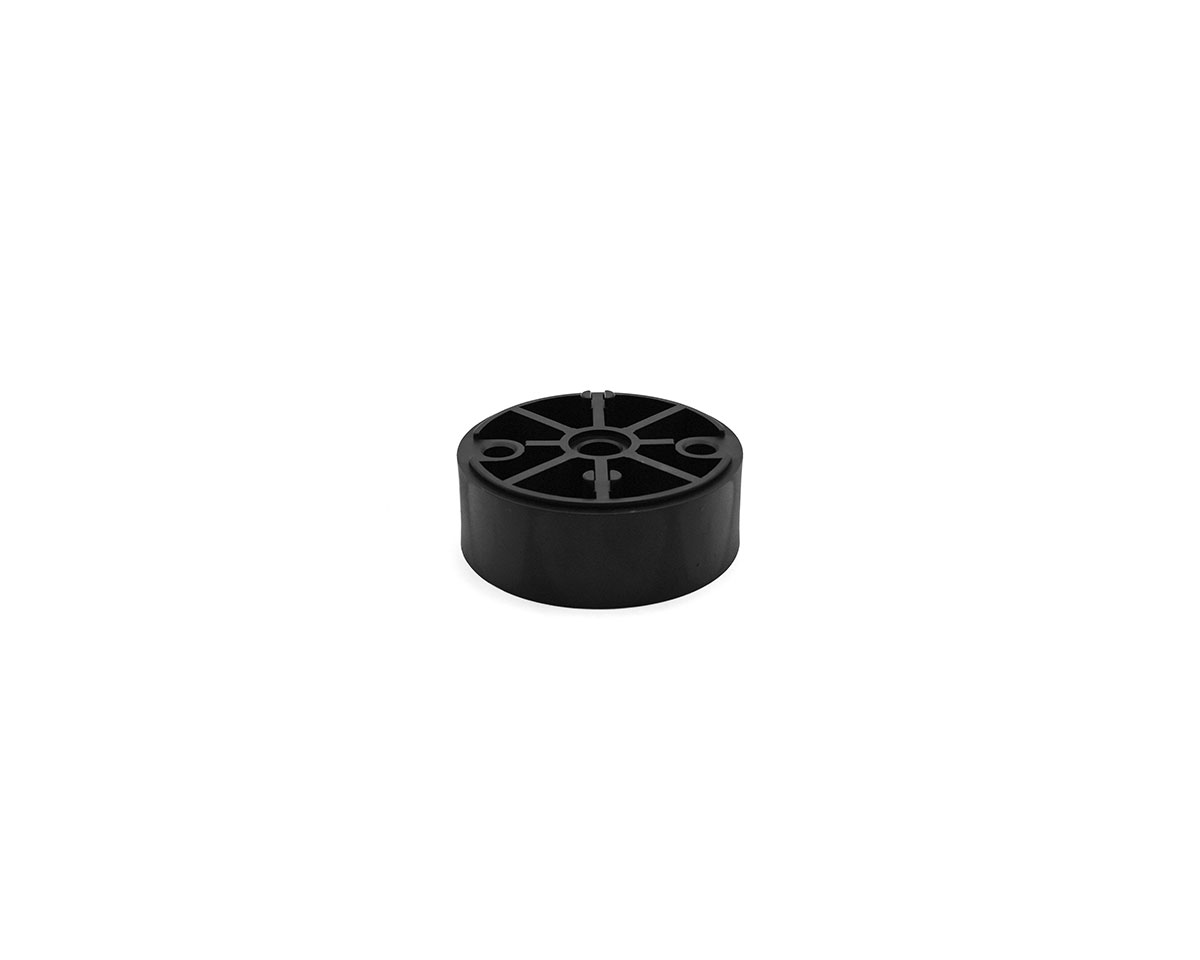

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Steel
Ø spindle (mm):	24
Spindle length (mm):	200
Balancing angle:	4°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 123 mm, M24 x 200 mm, Galvanized steel, Total height 251 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
