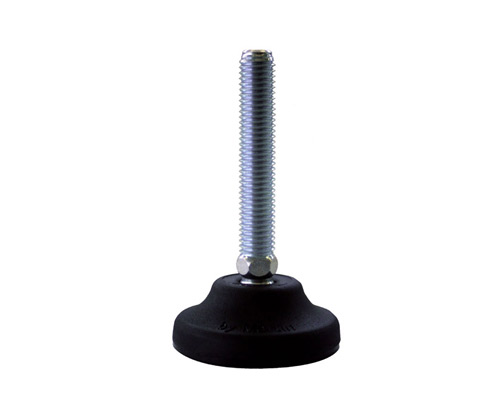

Levelling foot PA, Ø 65 mm, M10 x 100 mm Steel, NBR
This durable levelling foot made of polyamide features a 65 mm diameter and M10 x 100 mm galvanized steel spindle, providing maximum stability with a static load capacity of 11,000 N and 30° adjustment.
| Quantity | Price |
|---|---|
| From 1 |
€4.85*
|
| From 5 |
€4.64*
|
| From 15 |
€4.00*
|
| From 50 |
€3.79*
|
14 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

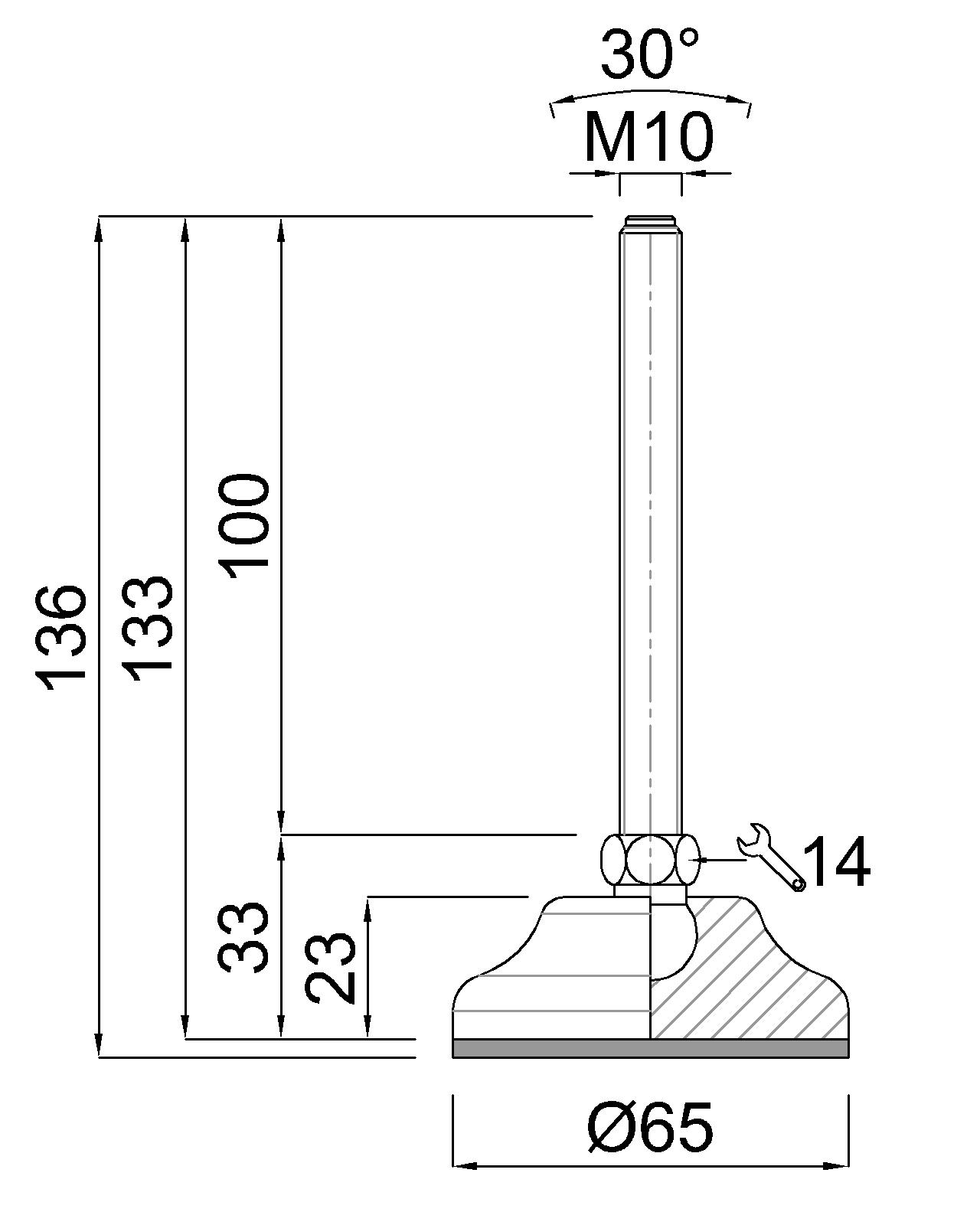

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
