Levelling foot PA, Ø 103 mm, M20 x 150 mm Steel, Drills, NBR
Ensure stability in your applications with our durable Levelling Foot, featuring a Ø 103 mm polyamide base and M20 x 150 mm galvanized steel spindle. Capable of supporting static loads up to 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€7.73*
|
| From 5 |
€7.40*
|
| From 15 |
€6.37*
|
| From 50 |
€6.04*
|
52 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

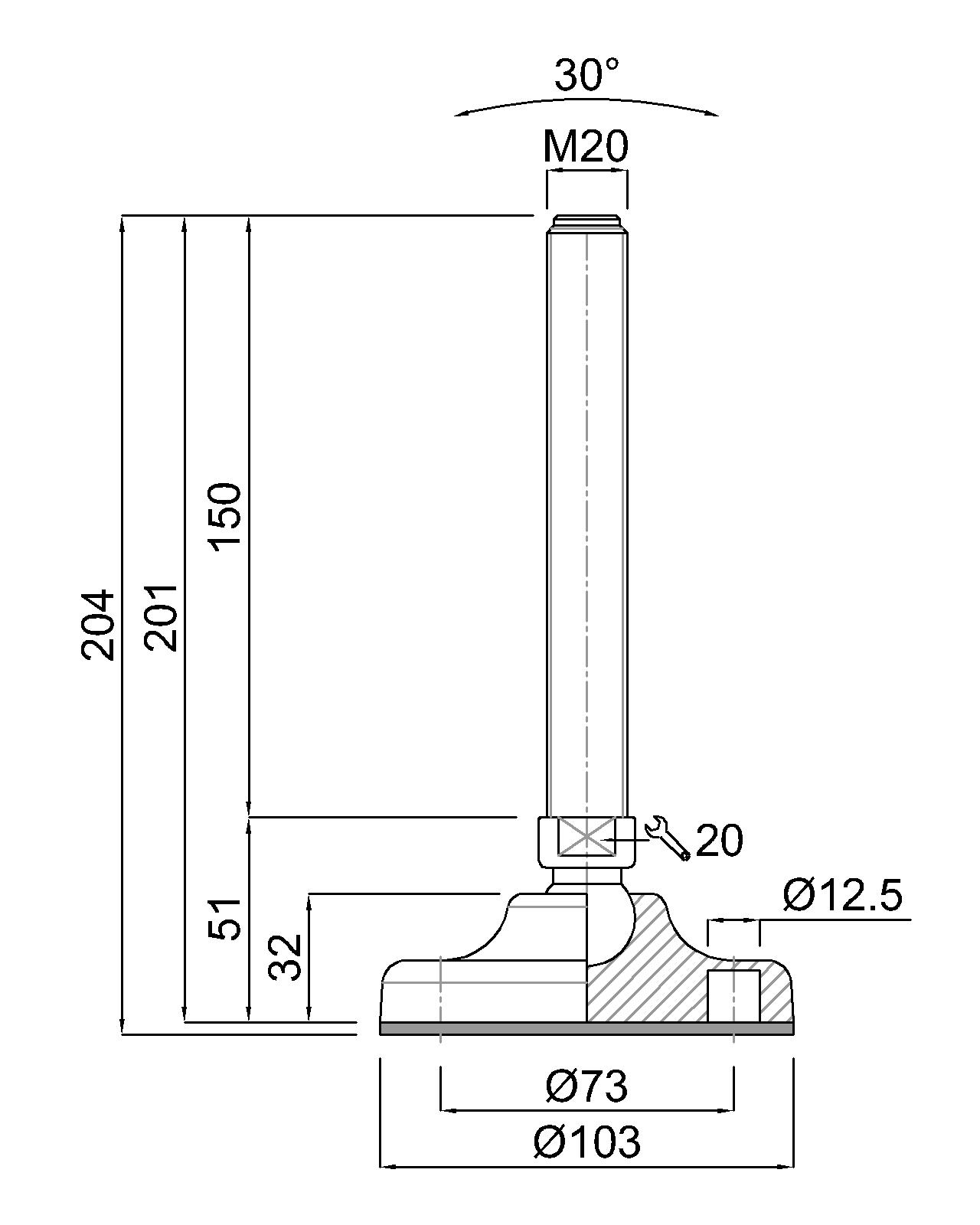

Technical drawing
