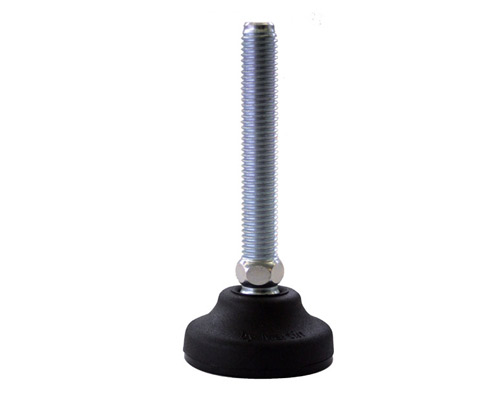

Levelling foot PA, Ø 50 mm, M10 x 25 mm Steel, NBR
Optimize your machinery setup with our PA Levelling Foot, featuring a 50 mm diameter, M10 x 25 mm galvanized steel spindle, and robust NBR antislip design for loads up to 11,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€3.20*
|
| From 5 |
€3.06*
|
| From 15 |
€2.64*
|
| From 50 |
€2.50*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |

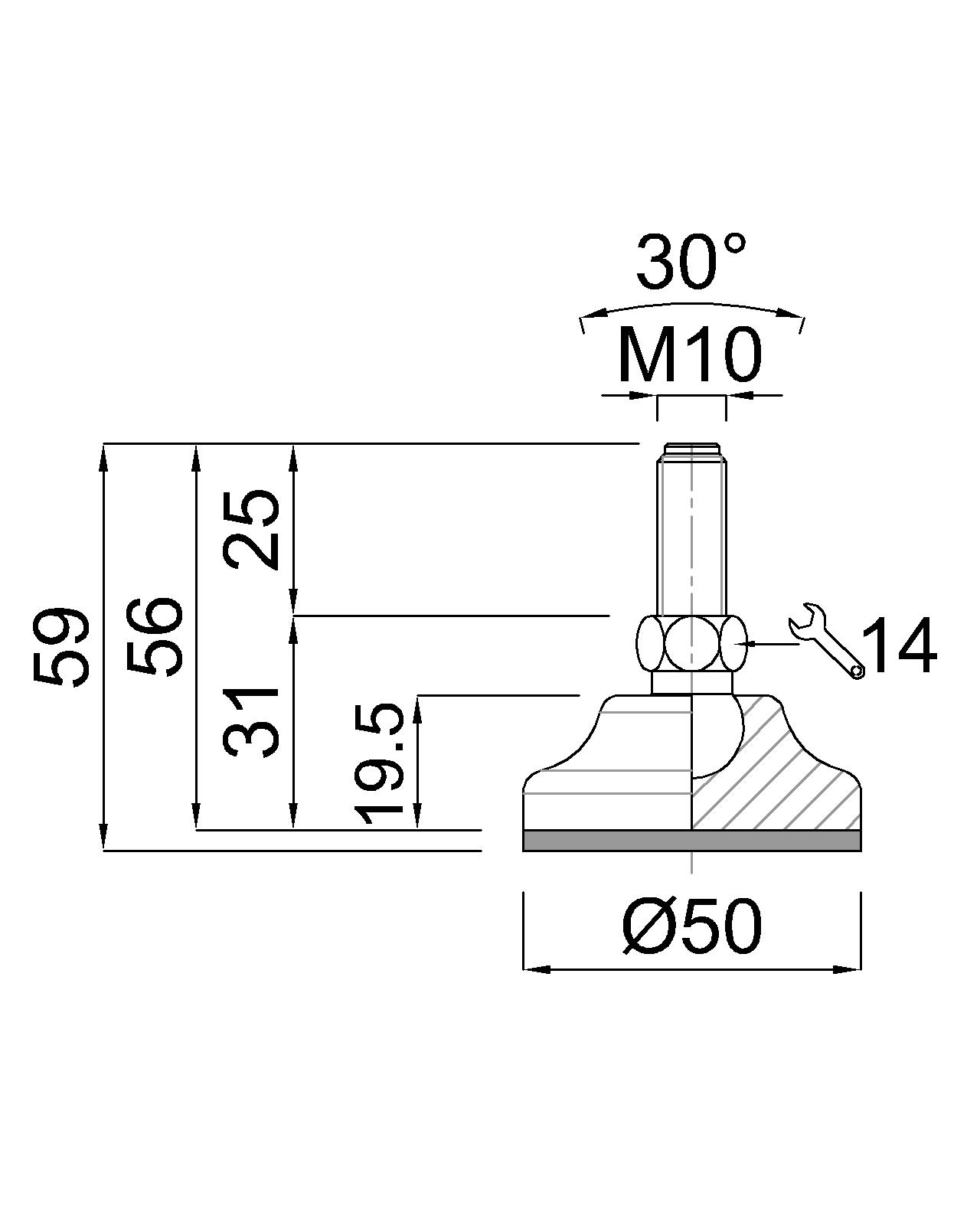

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
