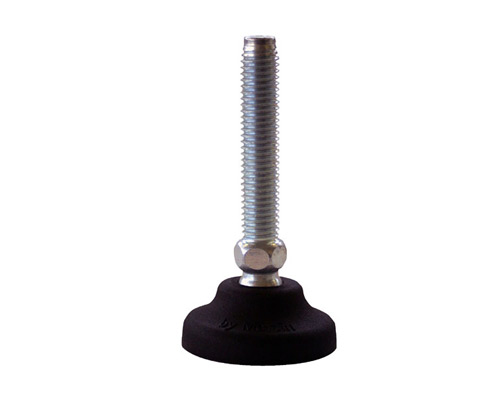

Levelling foot PA, Ø 40 mm, M8 x 100 mm Steel
Enhance stability with our PA Levelling Foot, featuring a 40 mm diameter and M8 x 100 mm galvanized steel spindle. Supports static loads up to 10,000 N with a 30° articulated screw.
| Quantity | Price |
|---|---|
| From 1 |
€3.68*
|
| From 5 |
€3.53*
|
| From 15 |
€3.04*
|
| From 50 |
€2.88*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 8 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |

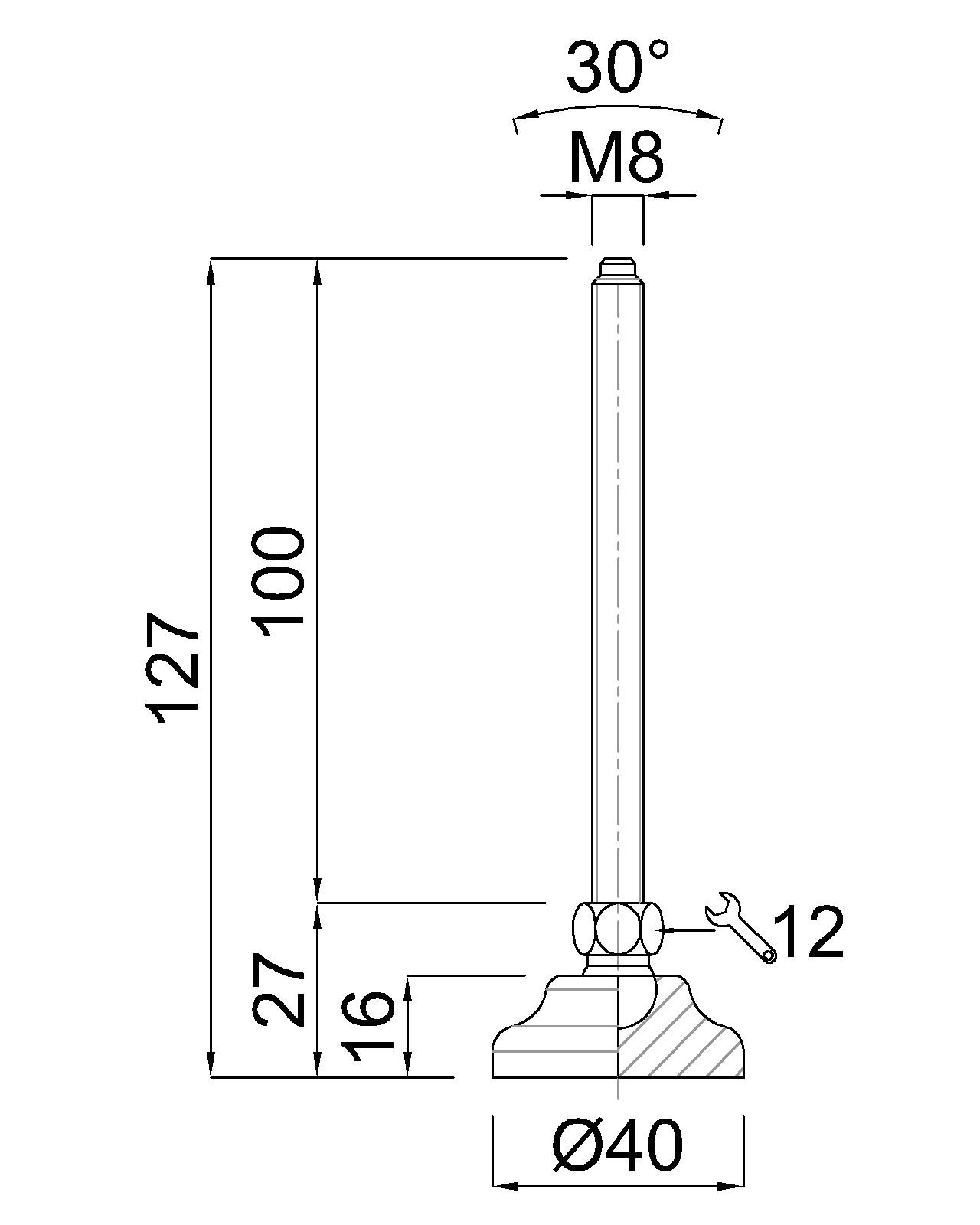

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
