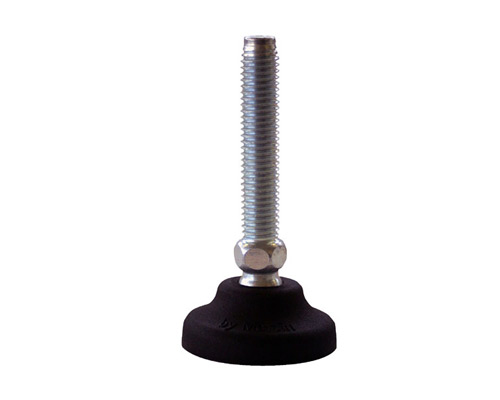

Levelling foot PA, Ø 40 mm, M10 x 100 mm Steel
EAN
4061408017898
Type
45810234
Optimize your installations with our robust PA leveling foot, featuring a 40 mm diameter and a galvanized steel M10 x 100 mm spindle. Capable of withstanding static loads up to 10,000 N, it ensures stability even at a 30° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€3.61*
|
| From 5 |
€3.46*
|
| From 15 |
€2.98*
|
| From 50 |
€2.82*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot Polyamide, Ø 40 mm, M10 x 100 mm, Galvanized steel, Total height 127 mm, Articulated screw 30°, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
