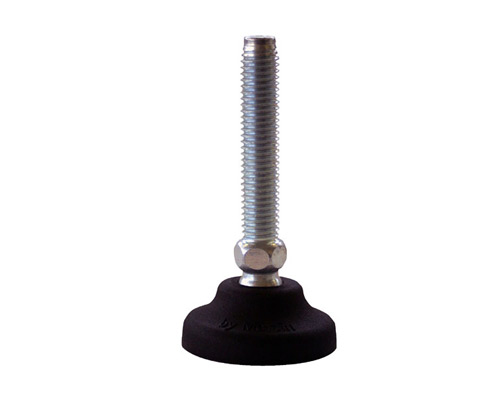

Levelling foot PA, Ø 40 mm, M8 x 75 mm Steel

EAN 4061408014606

Type 45810224

Enhance stability and support with our Ø 40 mm Levelling Foot, featuring a durable polyamide base and galvanized steel spindle. Ideal for dynamic loads up to 10,000 N.

Made from durable polyamide, ensuring excellent resistance to wear and chemicals for prolonged lifespan.
Galvanized steel spindle offers superior corrosion protection, enhancing stability and safety under load.
Articulated screw design allows for an adjustable leveling angle of up to 30°, accommodating uneven surfaces.
Capable of supporting a static load of up to 10,000 N, making it suitable for heavy-duty applications.
Compact design with a footplate diameter of 40 mm ensures compatibility with a wide range of equipment and structures.

Quantity	Price
From 1	€3.06*
From 5	€2.93*
From 15	€2.53*
From 50	€2.40*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€3.06* / piece

Our payment methods:

Accessories

Square plug polyamide 40x40, M8, nickel-plated brass insert

Type No.: 45817043/M8

From €2.74*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	31-40
Vibration damping:	No
Material spindle:	Steel
Ø spindle (mm):	8
Spindle length (mm):	75
Balancing angle:	30°
Hygiene:	No

Product description

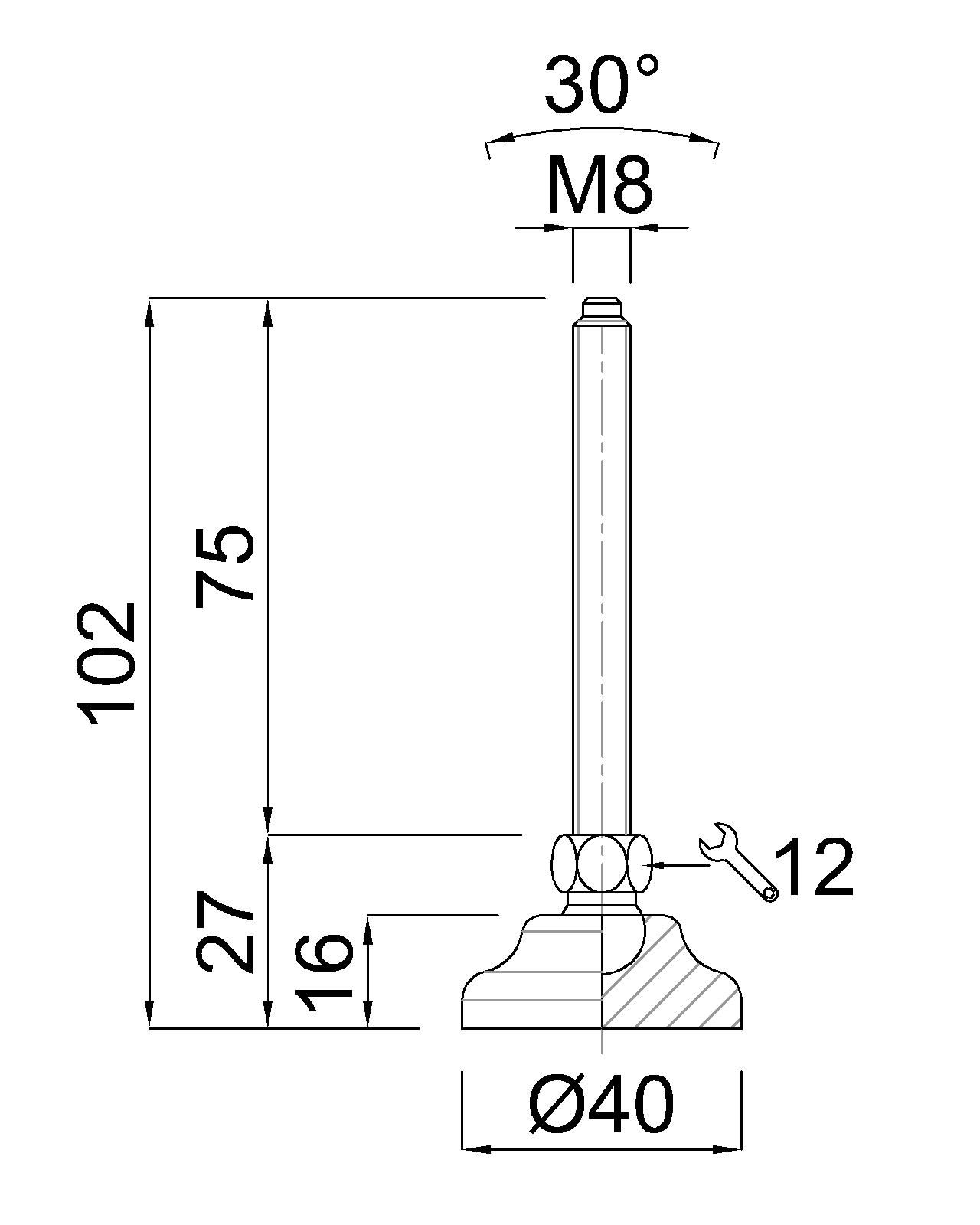

Levelling foot Polyamide, Ø 40 mm, M8 x 75 mm, Galvanized steel, Total height 102 mm, Articulated screw 30°, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
