Levelling foot PA, Ø 50 mm, M12 x 100 mm Steel, NBR

EAN 4061408014330

Type 45810255

Achieve stability and precision with our Polyamide Levelling Foot, designed for a static load of 11,000 N. Features a 30° articulated screw and anti-slip NBR for optimum support.

Durable construction with a polyamide base and galvanized steel spindle ensuring high resistance to wear and corrosion.
Large 50 mm base diameter provides excellent stability and load distribution up to a static load of 11,000 N.
Articulated design with a 30° adjustment angle allows for precise leveling on uneven surfaces.
Antislip NBR rubber provides superior grip and reduces the risk of slippage in various applications.
Flexible spindle length of 100 mm with a 12 mm diameter for compatibility with diverse setups and environments.

Quantity	Price
From 1	€4.66*
From 5	€4.46*
From 15	€3.84*
From 50	€3.65*

10 on stock, Refill time: 5 days

€4.66* / piece

Our payment methods:

Accessories

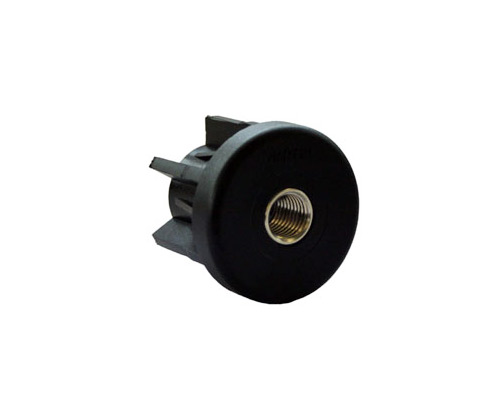

Round plug polyamide Ø 30 x 1, M12, nickel-plated brass insert

Type No.: 45817001

From €2.44*

Square plug polyamide 30 x 30, M12, nickel-plated brass insert

Type No.: 45817035

From €2.44*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	41-50
Material spindle:	Steel
Ø spindle (mm):	12
Spindle length (mm):	100
Balancing angle:	30°

Product description

Levelling foot Polyamide, Ø 50 mm, M12 x 100 mm, Galvanized steel, Total height 134 mm, Articulated screw 30°, Antislip NBR black, Static load 11.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
