Levelling foot PA, Ø 103 mm, M20 x 150 mm Steel, Drills
Introducing the PA Levelling Foot: a robust solution featuring a 103 mm diameter polyamide base, a 150 mm galvanized steel spindle, and an impressive static load capacity of 25,000 N. Ideal for precise leveling.
| Quantity | Price |
|---|---|
| From 1 |
€6.30*
|
| From 5 |
€6.03*
|
| From 15 |
€5.19*
|
| From 50 |
€4.92*
|
52 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |

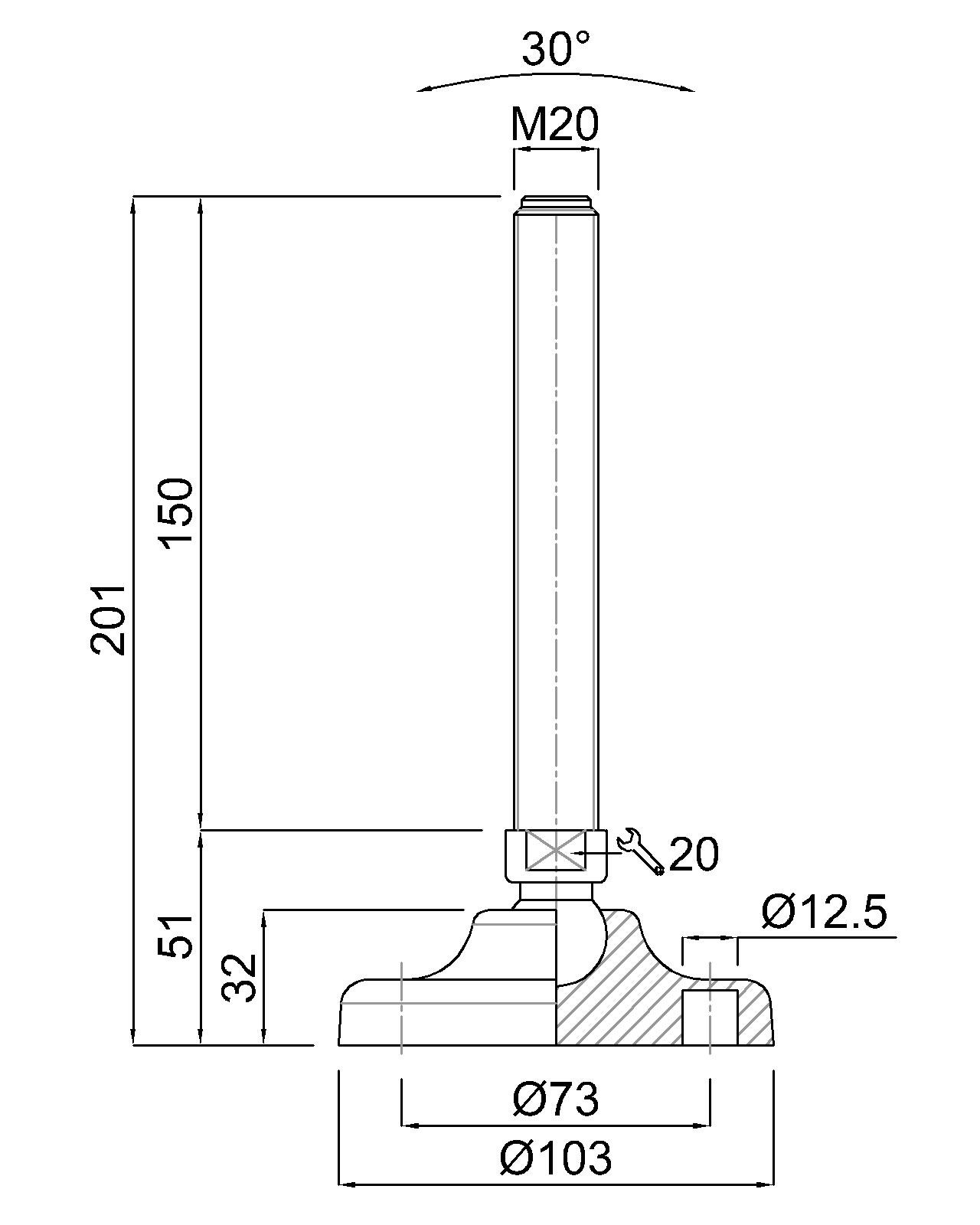

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
