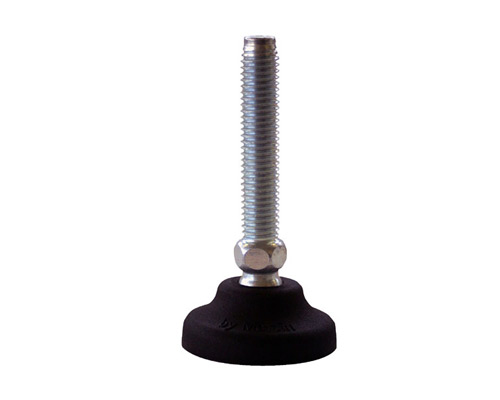

Levelling foot PA, Ø 40 mm, M10 x 125 mm Steel

EAN 4061408012909

Type 45810236

Experience precision and stability with our Polyamide Levelling Foot, featuring a 40 mm diameter and a galvanized steel M10 x 125 mm spindle. Supports loads up to 10,000 N with a 30° articulation.

Made from durable polyamide, ensuring high resistance to wear and chemical exposure
Galvanized steel spindle provides enhanced corrosion resistance for long-term reliability
Total height of 152 mm with a stable base diameter of 40 mm ensures optimal support
Articulated screw design allows for a 30° adjustment angle, accommodating uneven surfaces
Capable of supporting a static load of up to 10,000 N, making it suitable for heavy-duty applications

Quantity	Price
From 1	€4.02*
From 5	€3.85*
From 15	€3.32*
From 50	€3.15*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€4.02* / piece

Our payment methods:

Accessories

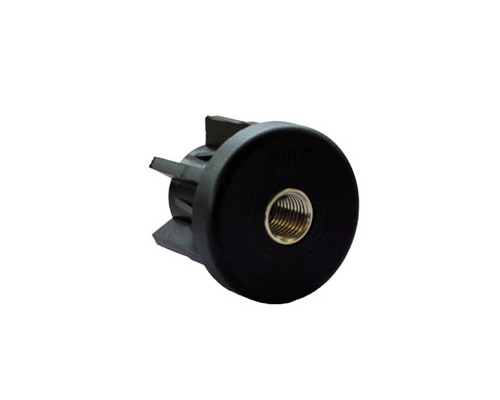

Round plug polyamide Ø 30 x 1, M10, nickel-plated brass insert

Type No.: 45817000

From €2.44*

Square plug polyamide 30 x 30, M10, nickel-plated brass insert

Type No.: 45817034

From €2.44*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	31-40
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	10
Spindle length (mm):	125
Balancing angle:	30°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 40 mm, M10 x 125 mm, Galvanized steel, Total height 152 mm, Articulated screw 30°, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
