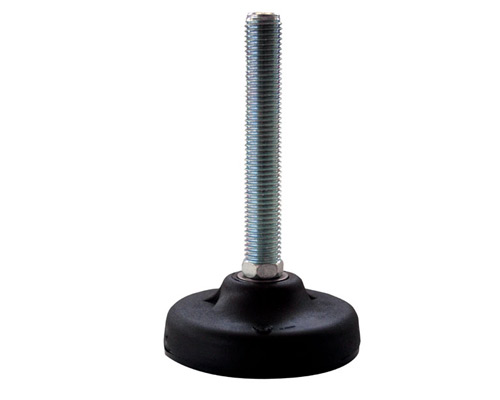

Levelling foot PA, Ø 83 mm, M16 x 50 mm Steel, Drills
Achieve precise leveling with our Polyamide Levelling Foot, featuring a robust galvanized steel spindle and a total height of 86 mm. Ideal for static loads up to 25,000 N, it ensures stability with a 4° articulated screw and dual bore holes. Perfect for engineers and manufacturers seeking reliable support solutions.
| Quantity | Price |
|---|---|
| From 1 |
€4.49*
|
| From 5 |
€4.30*
|
| From 15 |
€3.70*
|
| From 50 |
€3.51*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 50 |
| Balancing angle: | 4° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
