Levelling foot PA, Ø 103 mm, M16 x 225 mm Steel, Drills
Enhance stability with our PA leveling foot, featuring a 103 mm diameter and M16 x 225 mm galvanized steel spindle. Accommodates static loads up to 25,000 N and adjustable up to 30°.
| Quantity | Price |
|---|---|
| From 1 |
€7.76*
|
| From 5 |
€7.43*
|
| From 15 |
€6.40*
|
| From 50 |
€6.07*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 225 |
| Balancing angle: | 30° |
| Hygiene: | No |

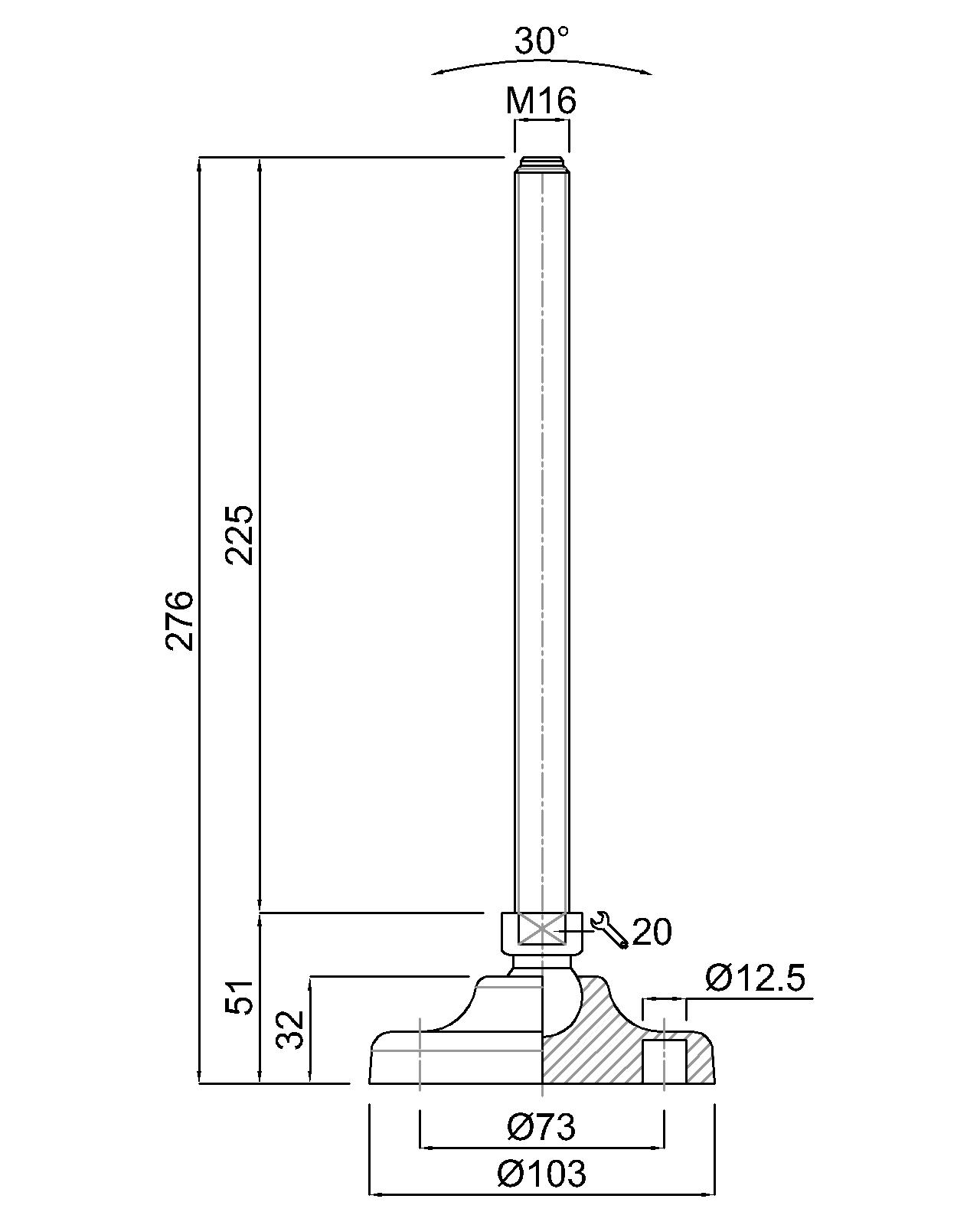

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
