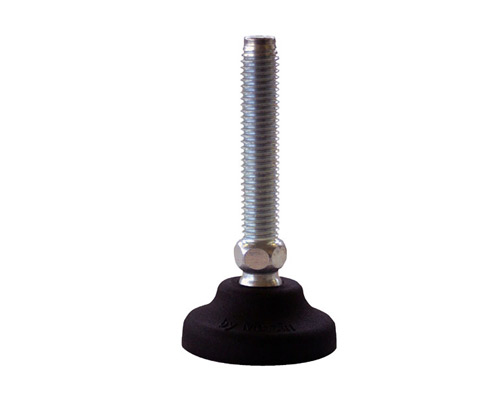

Levelling foot PA, Ø 40 mm, M10 x 25 mm Steel
The 40 mm Polyamide leveling foot with M10 x 25 mm galvanized steel spindle ensures optimal stability with a static load capacity of 10,000 N and a 30° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€2.52*
|
| From 5 |
€2.41*
|
| From 15 |
€2.08*
|
| From 50 |
€1.97*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 31-40 |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |
| Hygiene: | No |

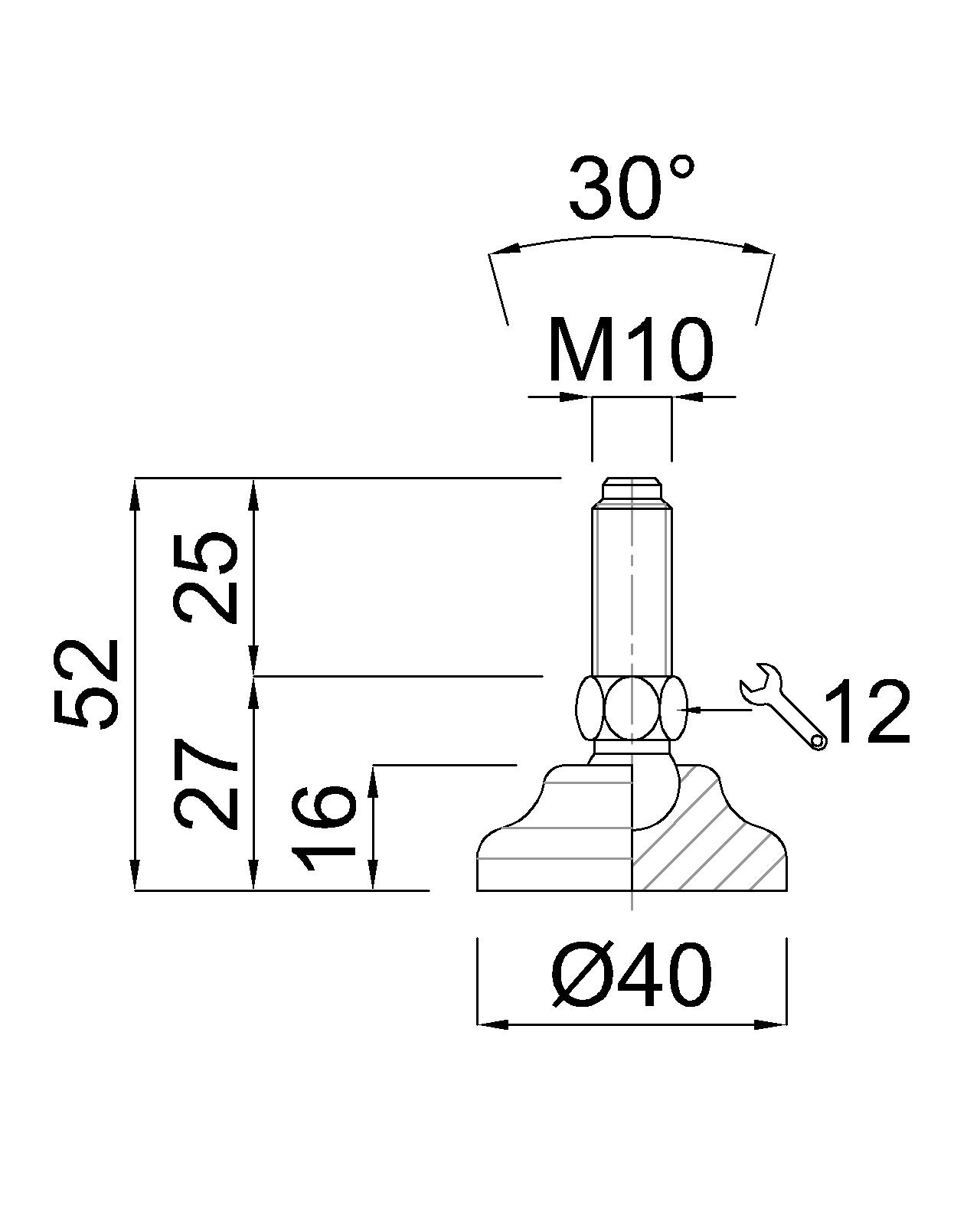

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
