Levelling foot PA, Ø 83 mm, M16 x 75 mm Steel, Drills, NBR

EAN 4061408009220

Type 45810297

Optimize your machinery's stability with our durable Polyamide Levelling Foot. Featuring a 30° articulated screw, galvanized steel construction, and excellent slip resistance, it supports static loads up to 20,000 N.

Robust levelling foot made of high-quality Polyamide and galvanized steel, ensuring durability and corrosion resistance
Articulated screw allows for an adjustable angle of up to 30°, providing versatility for uneven surfaces
Static load capacity of 20,000 N, making it suitable for heavy-duty applications
Anti-slip NBR pad enhances stability and prevents unwanted movement, ideal for various industrial settings
Easy installation with two bore holes (Ø 8.5 mm) for secure ground attachment

Quantity	Price
From 1	€5.49*
From 5	€5.26*
From 15	€4.53*
From 50	€4.29*

*Prices excl. VAT plus shipping costs

19 on stock, Refill time: 5 days

€5.49* / piece

Our payment methods:

Accessories

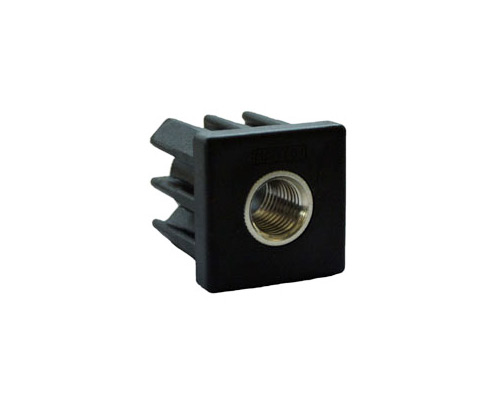

Square plug polyamide 40x40, M16, nickel-plated brass insert

Type No.: 45817051

From €2.74*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	75
Balancing angle:	30°

Product description

Levelling foot Polyamide, Ø 83 mm, M16 x 75 mm, Galvanized steel, Total height 116 mm, Articulated screw 30°, Bore holes Ø 8,5 mm, Antislip NBR black, Static load 20.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
