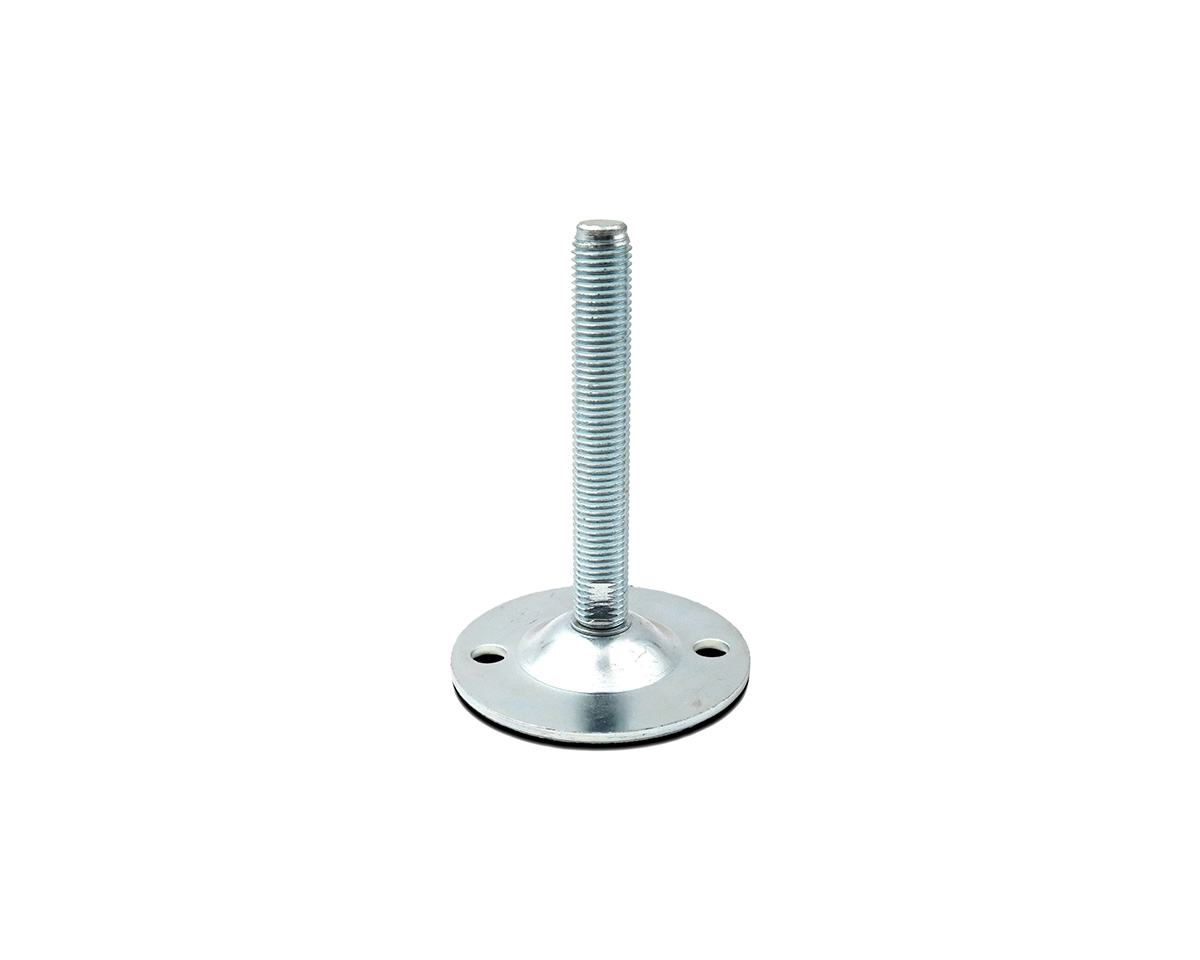

Levelling foot PRESSED steel, Ø 85 mm, M20 x 150 mm, Drills, NBR
Ensure stability in your applications with our Pressed Steel Levelling Foot. Featuring a robust Ø 85 mm base, M20 x 150 mm spindle, and anti-slip NBR material, it supports a static load of 15,000 N with an articulated screw design.
| Quantity | Price |
|---|---|
| From 1 |
€13.08*
|
| From 5 |
€12.53*
|
| From 15 |
€12.13*
|
| From 50 |
€11.97*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 8° |

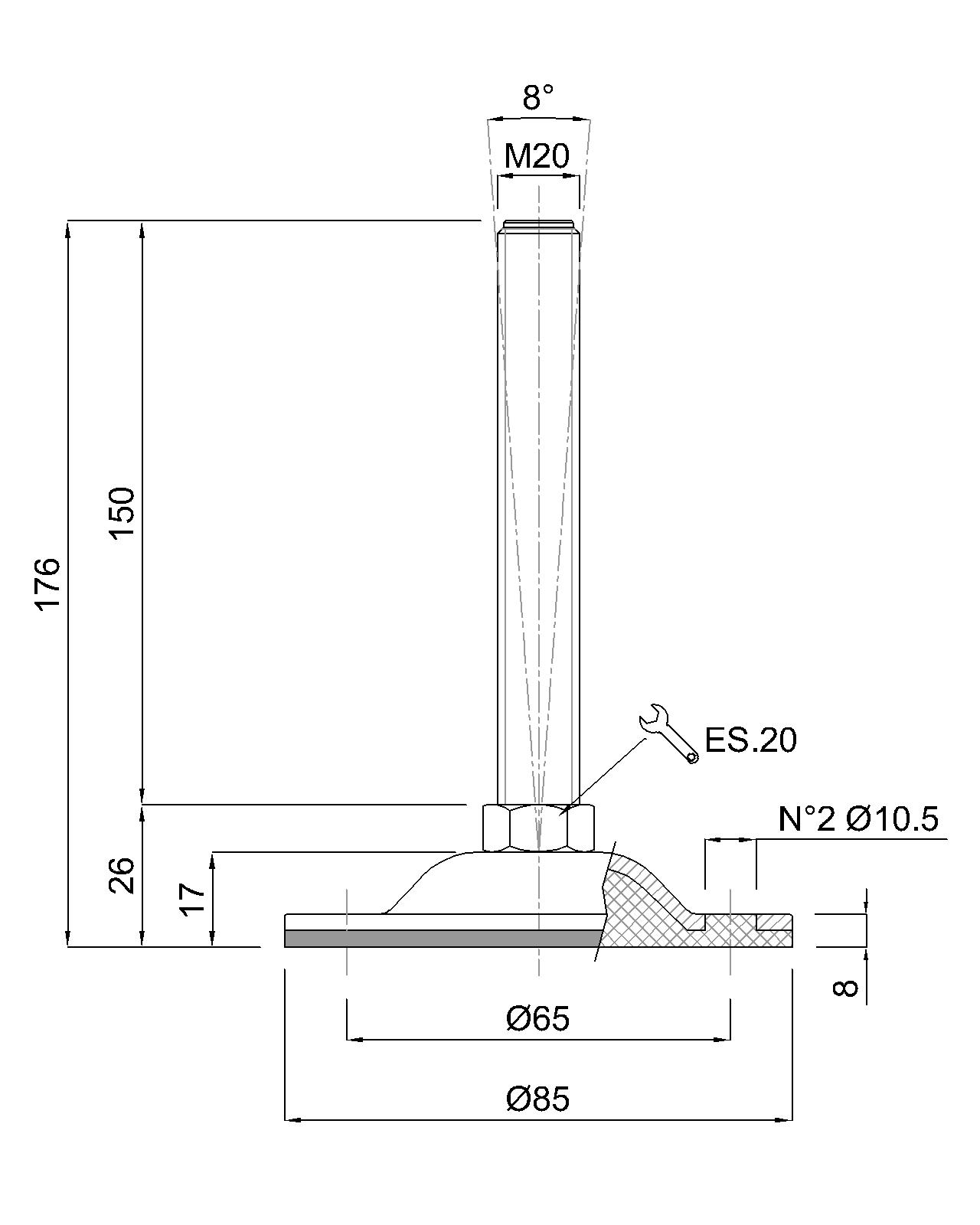

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
