Levelling foot PRESSED steel, 151 x 110 mm, M16 x 150 mm, Nut, Drills
Optimize your equipment's stability with our galvanized steel levelling foot, featuring a robust design and static load capacity of 25,000 N. Perfect for precise adjustments with an articulated screw and durable construction.
| Quantity | Price |
|---|---|
| From 1 |
€8.52*
|
| From 5 |
€8.25*
|
| From 15 |
€8.09*
|
| From 50 |
€7.98*
|
4 on stock, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 8° |
| Hygiene: | No |

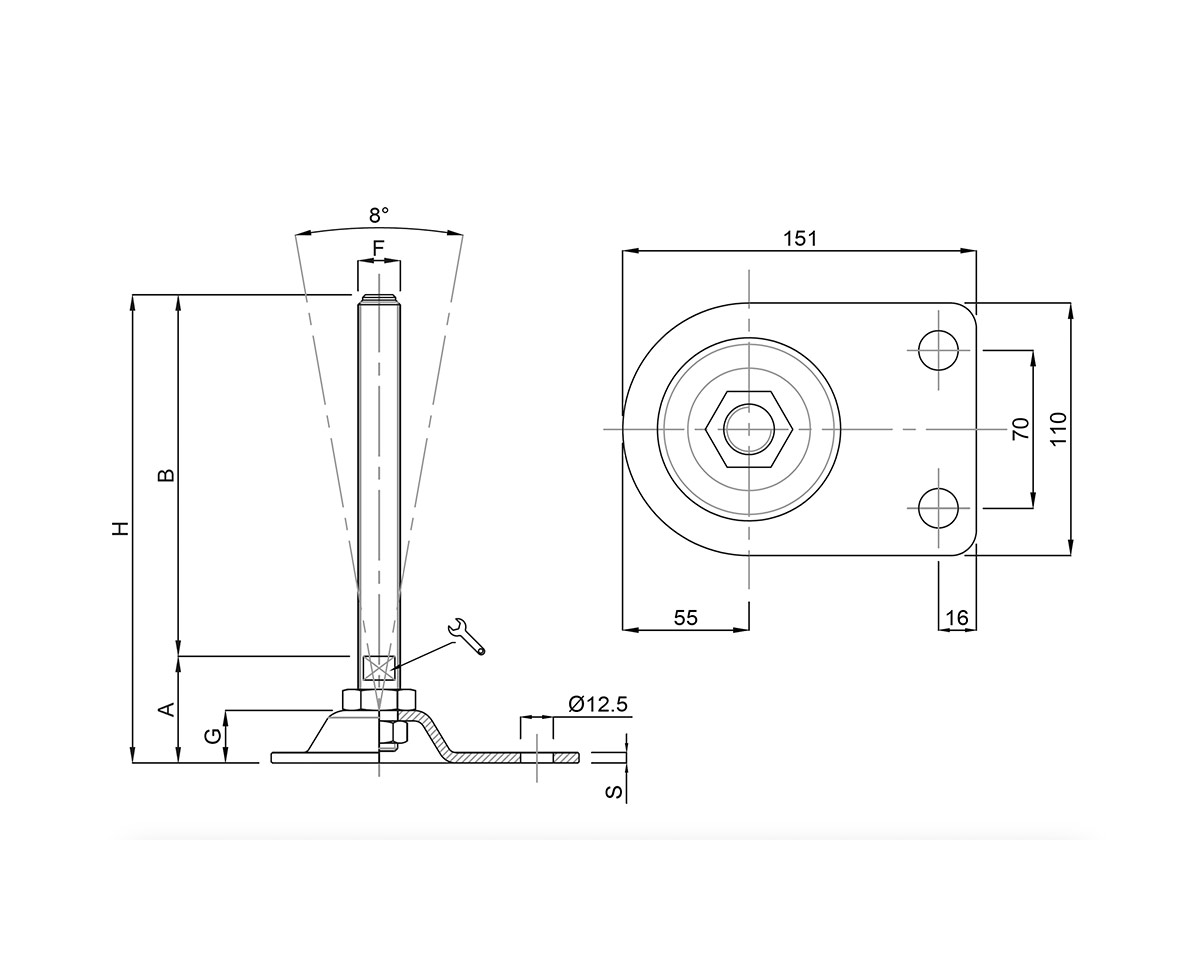

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
