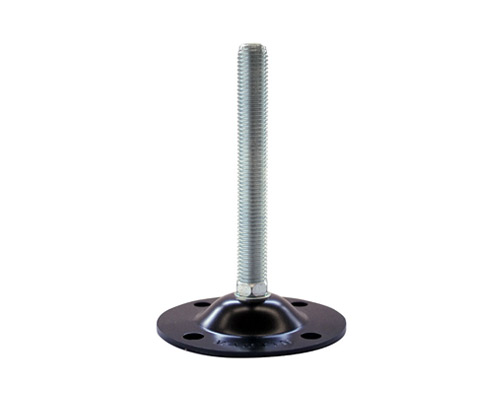

Levelling foot PRESSED steel black, Ø 123 mm, M20 x 150 mm, Drills
EAN
4061408020898
Type
45815618C
Introducing our robust black pressed steel leveling foot, featuring a diameter of 123 mm and a static load capacity of 25,000 N. Engineered for stability with an articulated screw angle of 8° and equipped with dual bore holes for secure floor mounting, it's the ideal choice for precise leveling in industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.66*
|
| From 5 |
€8.30*
|
| From 15 |
€8.03*
|
| From 50 |
€7.93*
|
16 on stock, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 4 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 8° |
| Hygiene: | No |
Technical drawing
Levelling foot PRESSED steel black, Ø 123 mm, M20 x 150 mm, Galvanized steel, Total height 184 mm, Articulated screw 8°, Bore holes Ø 12,5 mm, Static load 25.000 N
