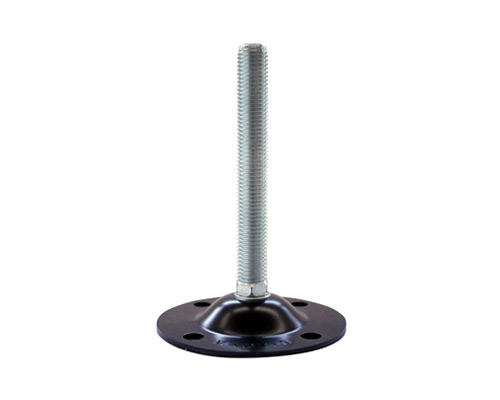

Levelling foot PRESSED steel black, Ø 123 mm, M20 x 200 mm, Drills
Enhance stability with our pressed steel leveling foot, featuring a robust Ø 123 mm base and M20 x 200 mm spindle. Designed for a static load of 25,000 N, it ensures reliable support with an 8° articulated screw and dual bore holes for secure ground fixation.
| Quantity | Price |
|---|---|
| From 1 |
€23.48*
|
| From 5 |
€22.48*
|
| From 15 |
€21.77*
|
| From 50 |
€21.49*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 8° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
