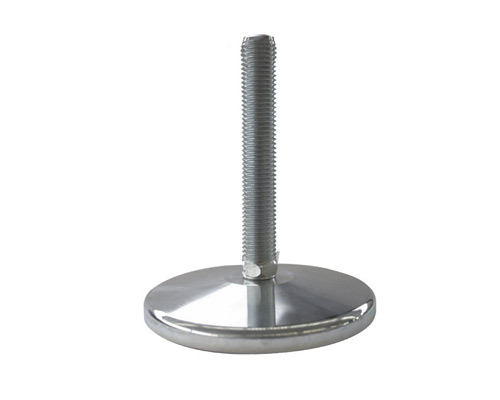

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 200 mm, NBR
EAN
4061408031238
Type
45811475
The MASSIV Steel levelling foot provides exceptional stability with a static load capacity of 50,000 N. Features a galvanized steel construction, 10° articulated screw, and anti-slip NBR for secure positioning.
| Quantity | Price |
|---|---|
| From 1 |
€44.09*
|
| From 5 |
€42.22*
|
| From 15 |
€40.88*
|
| From 50 |
€40.35*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M20 x 200 mm, Galvanized steel, Total height 239 mm, Articulated screw 10°, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
