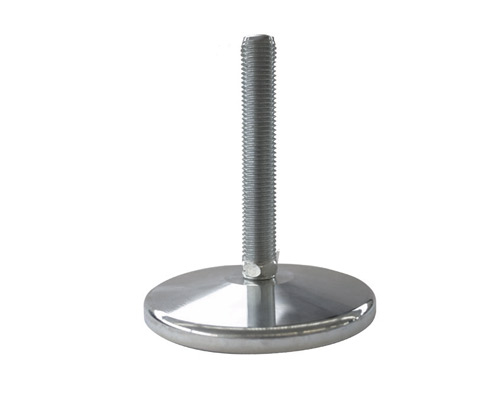

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 200 mm
Introducing the MASSIV Steel Levelling Foot, featuring a robust design with a 159 mm diameter base and M20 x 200 mm spindle. Capable of withstanding static loads up to 50,000 N, its galvanized steel construction ensures durability, while the 10° articulated screw allows for precise leveling in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€40.64*
|
| From 5 |
€38.92*
|
| From 15 |
€37.68*
|
| From 50 |
€37.19*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |

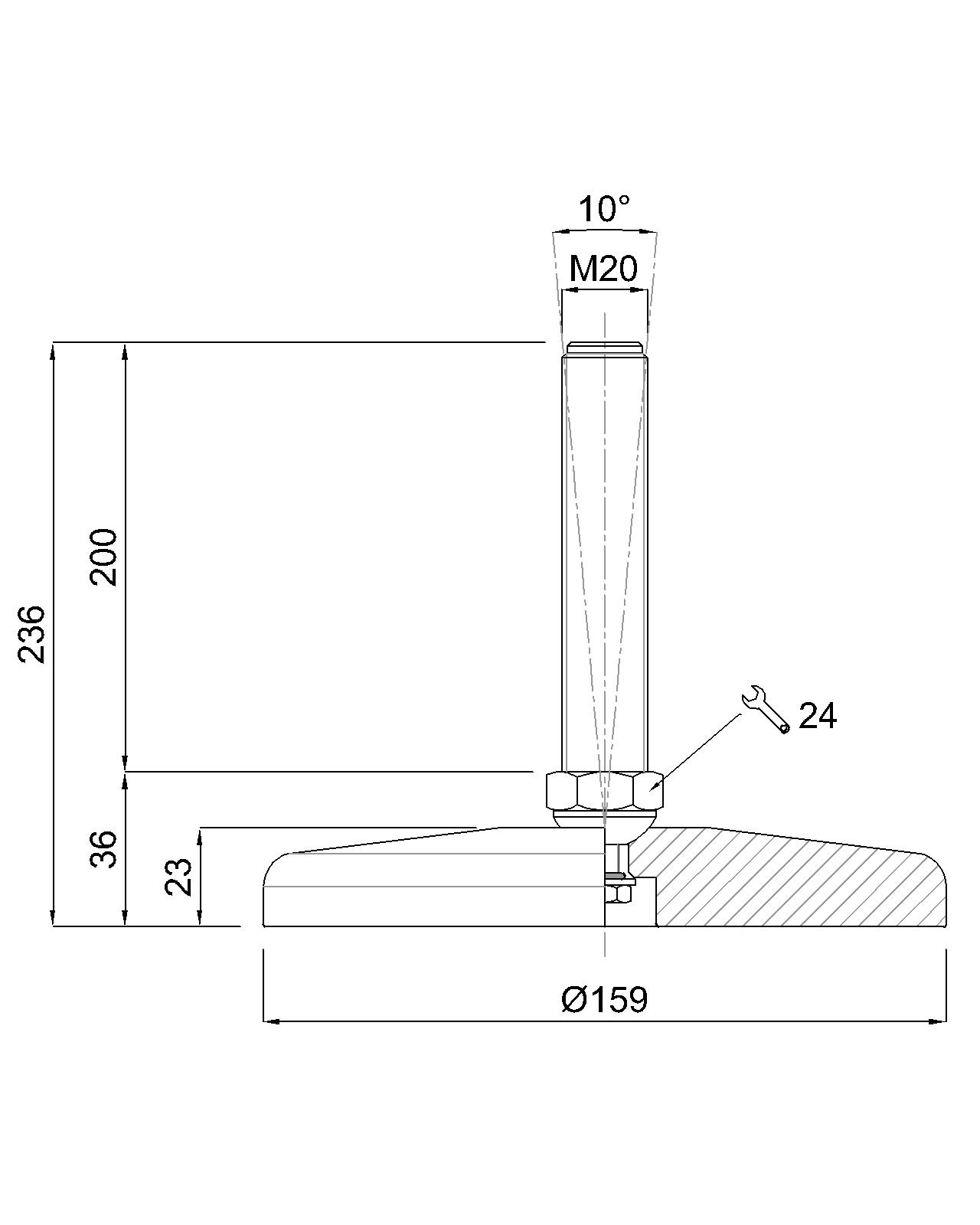

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
