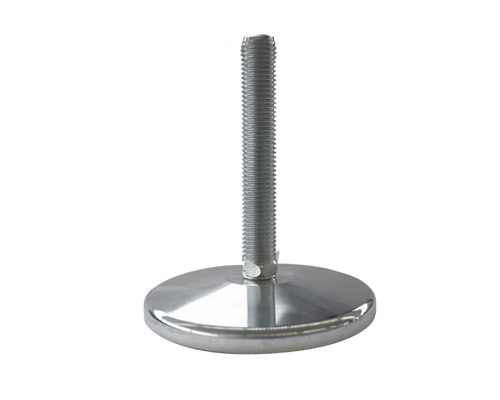

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 100 mm
EAN
4061408017485
Type
45811466
Optimize stability with the MASSIV Steel levelling foot. Featuring a 159 mm diameter, galvanized steel construction, and a load capacity of 50,000 N, it's ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€38.58*
|
| From 5 |
€36.94*
|
| From 15 |
€35.77*
|
| From 50 |
€35.30*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M20 x 100 mm, Galvanized steel, Total height 136 mm, Articulated screw 10°, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
