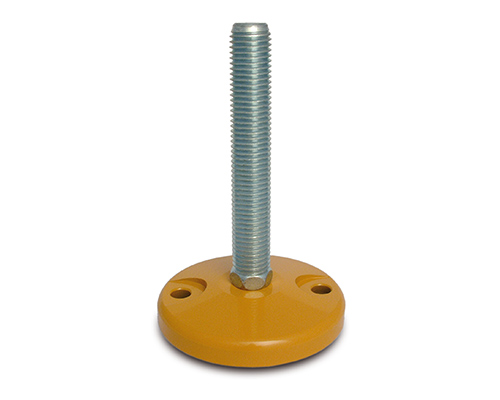

Levelling foot MASSIV Steel, Ø 120 mm, M24 x 200 mm, yellow, Drills, NBR
The MASSIV Steel leveling foot offers exceptional stability with a 120 mm diameter base and a robust M24 x 200 mm spindle. Designed for static loads up to 50,000 N, it features durable galvanized steel construction, anti-slip NBR, and easy installation with bore holes.
| Quantity | Price |
|---|---|
| From 1 |
€34.55*
|
| From 5 |
€33.09*
|
| From 15 |
€32.04*
|
| From 50 |
€31.62*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 200 |
| Balancing angle: | 0° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
