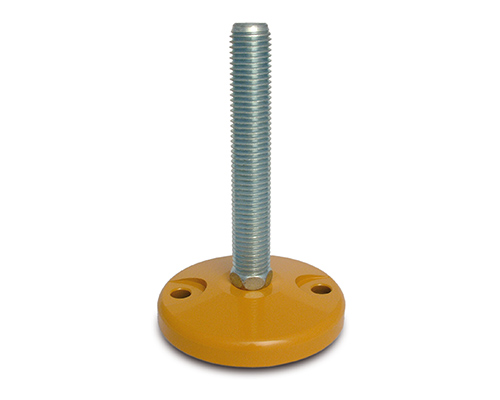

Levelling foot MASSIV Steel, Ø 120 mm, M20 x 150 mm, yellow, Drills
Introducing the MASSIV Steel Levelling Foot: engineered for strength and stability with a 120 mm diameter and 45,000 N static load capacity. Featuring galvanized steel and precision bore holes, it ensures robust performance for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€31.23*
|
| From 5 |
€29.91*
|
| From 15 |
€28.96*
|
| From 50 |
€28.58*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
