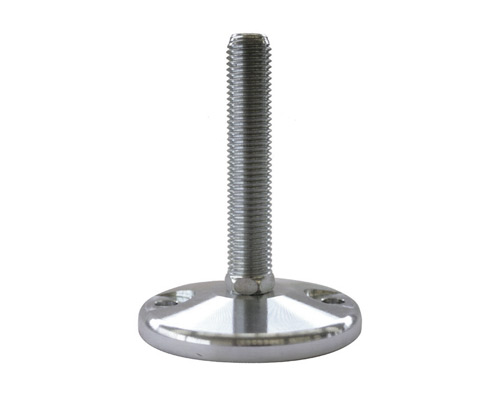

Levelling foot MASSIV Steel, Ø 120 mm, M30 x 150 mm, Drills
The MASSIV Steel leveling foot features a robust design with a 120 mm diameter base and an M30 x 150 mm spindle, supporting static loads up to 60,000 N for ultimate stability.
| Quantity | Price |
|---|---|
| From 1 |
€32.41*
|
| From 5 |
€31.03*
|
| From 15 |
€30.05*
|
| From 50 |
€29.66*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
