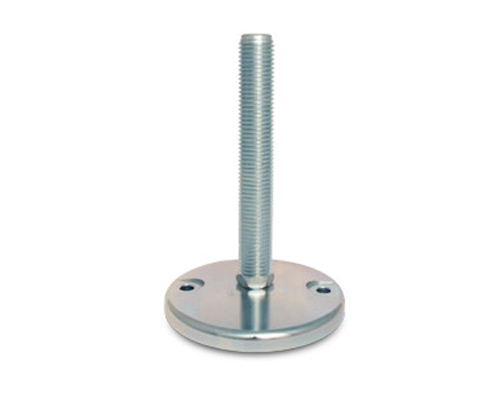

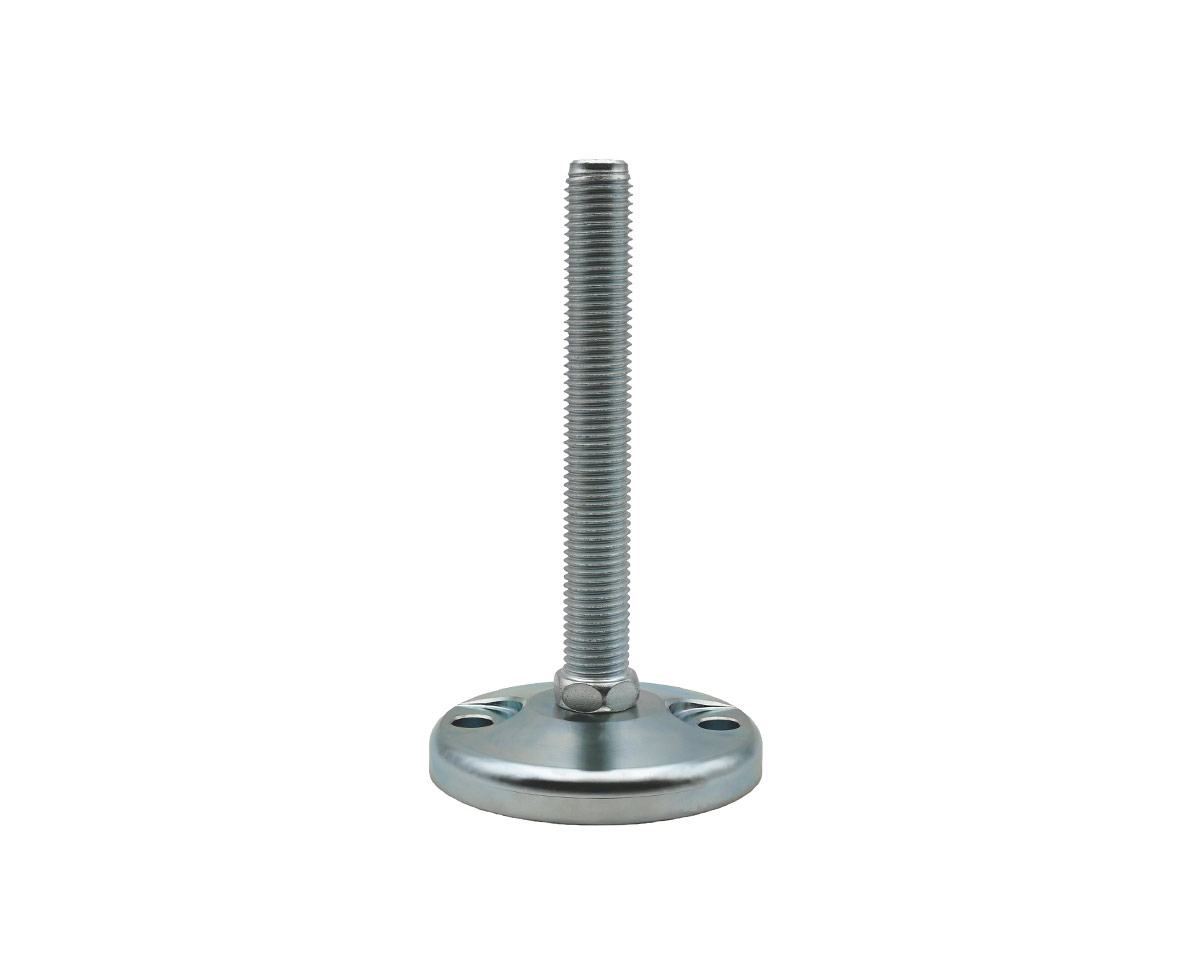

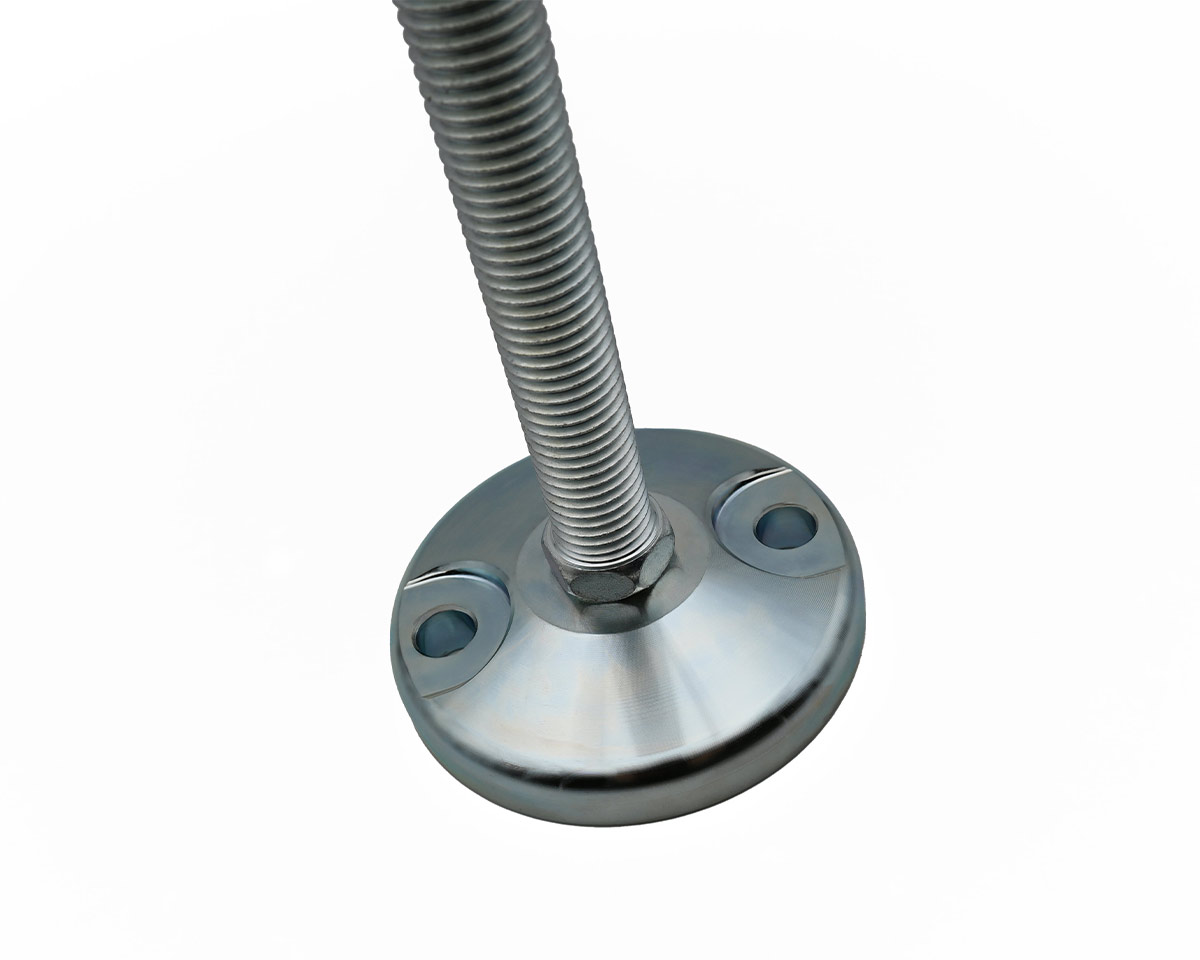

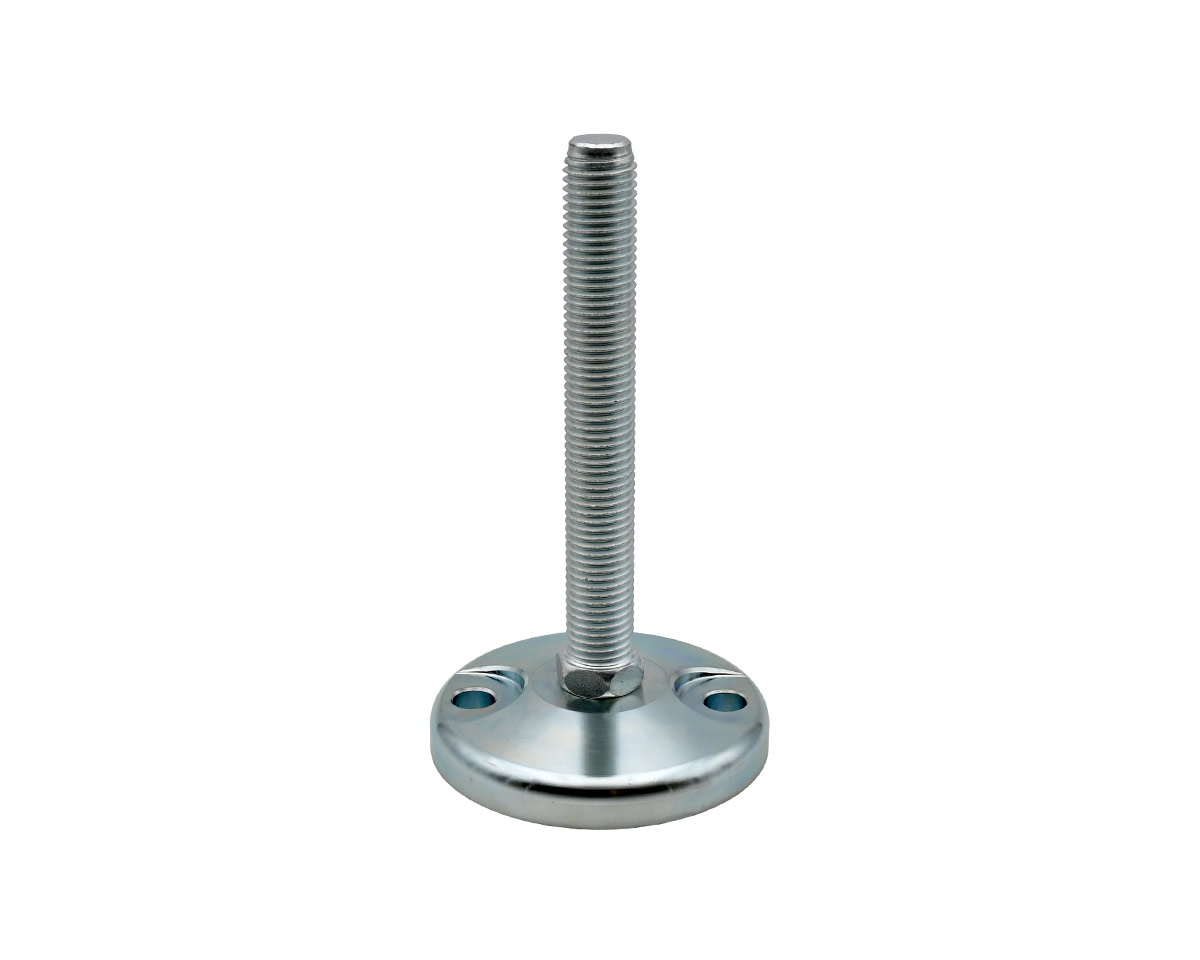

Levelling foot MASSIV Steel, Ø 159 mm, M24 x 250 mm, Drills, NBR
Discover the MASSIV Steel Levelling Foot, engineered for robust stability. With a 159 mm diameter and a static load capacity of 60,000 N, it ensures superior performance in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€48.44*
|
| From 5 |
€46.39*
|
| From 15 |
€44.92*
|
| From 50 |
€44.33*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 0° |

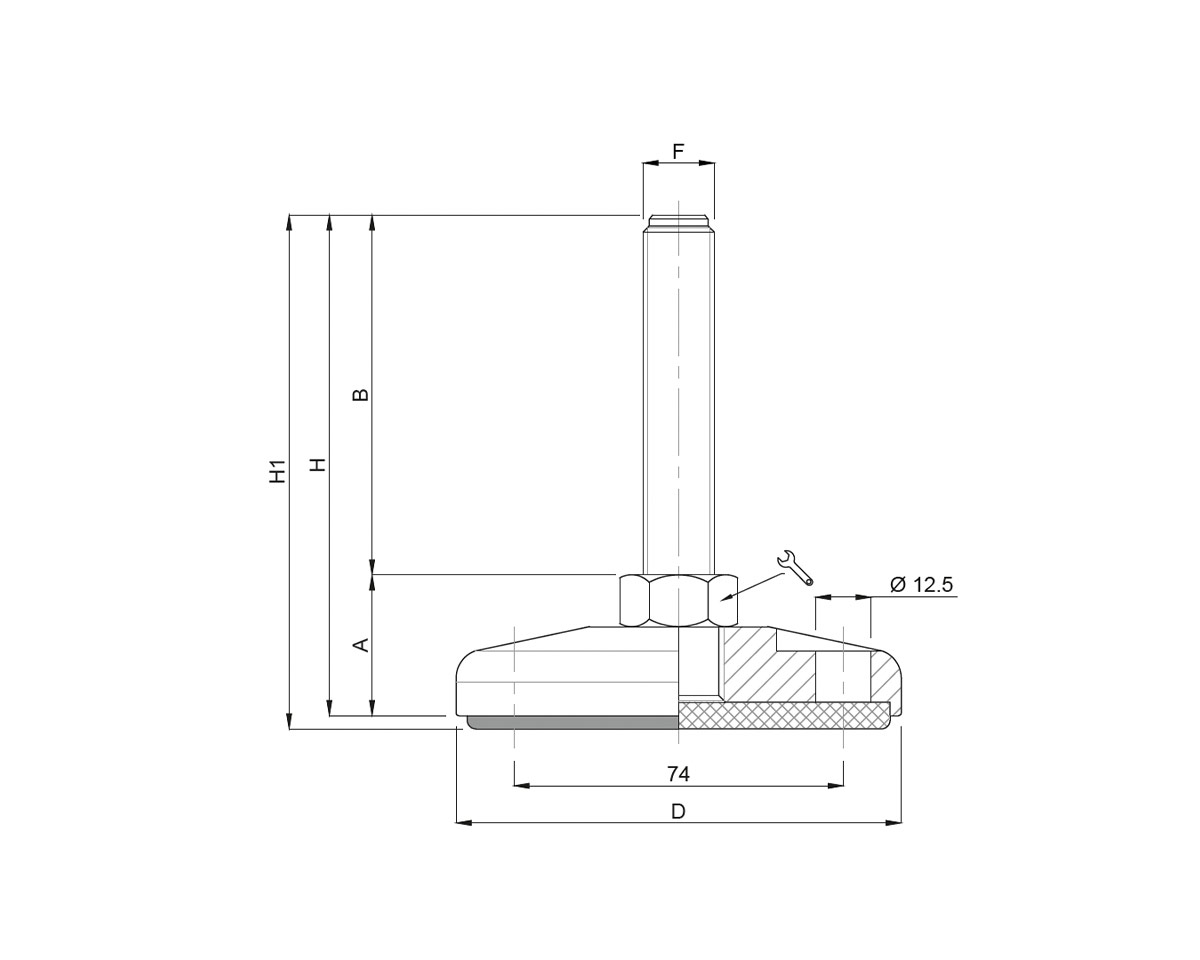

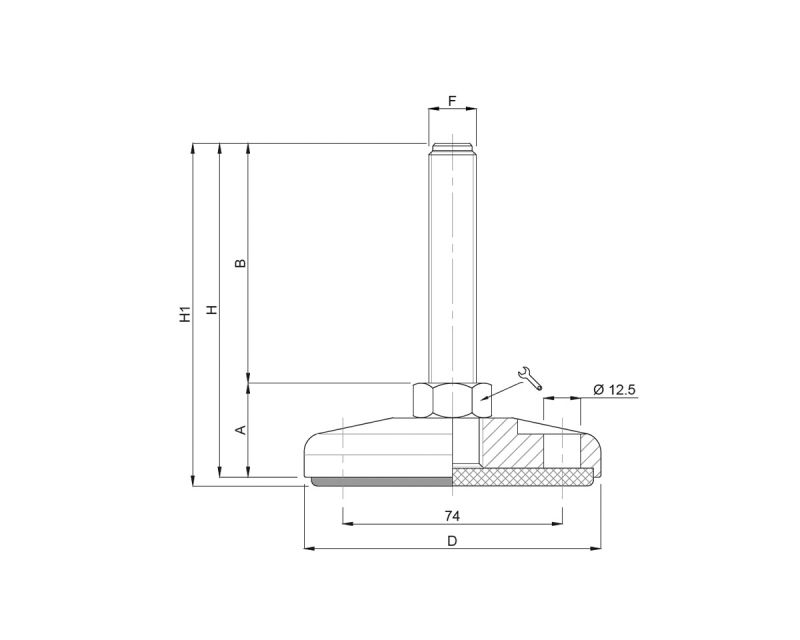

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
