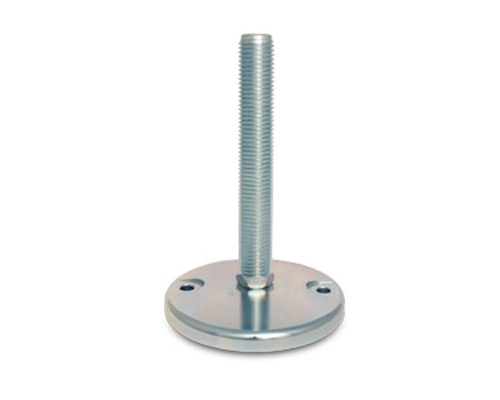

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 200 mm, Drills, NBR
Introducing the MASSIV Steel Levelling Foot: engineered for stability with a 159 mm diameter and robust M20 x 200 mm spindle. Easily supports static loads up to 50,000 N, featuring NBR black anti-slip technology for enhanced safety.
| Quantity | Price |
|---|---|
| From 1 |
€47.07*
|
| From 5 |
€45.08*
|
| From 15 |
€43.65*
|
| From 50 |
€43.08*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 0° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
