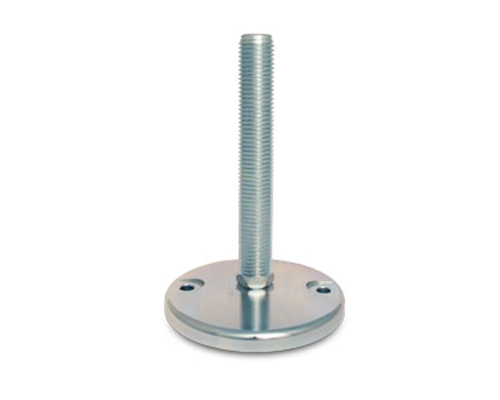

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 100 mm, Drills, NBR
Optimize your machinery stability with the MASSIV Steel levelling foot. Featuring a 159 mm diameter, a robust load capacity of 50,000 N, and NBR anti-slip, it's ideal for reliable applications.
| Quantity | Price |
|---|---|
| From 1 |
€45.05*
|
| From 5 |
€43.13*
|
| From 15 |
€41.77*
|
| From 50 |
€41.22*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
