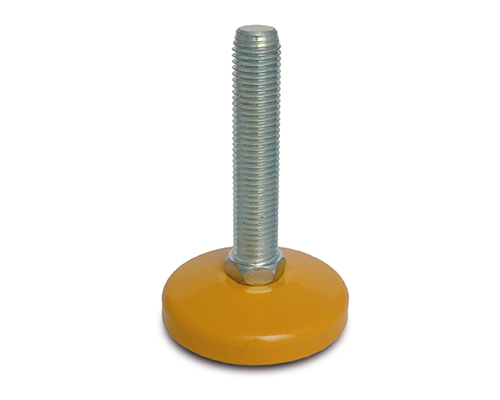

Levelling foot MASSIV Steel, Ø 80 mm, M24 x 225 mm, yellow, NBR
EAN
4061408103409
Type
45811549/24
Introducing the MASSIV Steel Levelling Foot: Designed for stability and precision, it supports static loads up to 40,000 N, featuring a durable galvanized body, articulating screw, and anti-slip NBR base.
| Quantity | Price |
|---|---|
| From 1 |
€24.11*
|
| From 5 |
€23.08*
|
| From 15 |
€22.35*
|
| From 50 |
€22.06*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M24 x 225 mm, Galvanized steel, Total height 256 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
