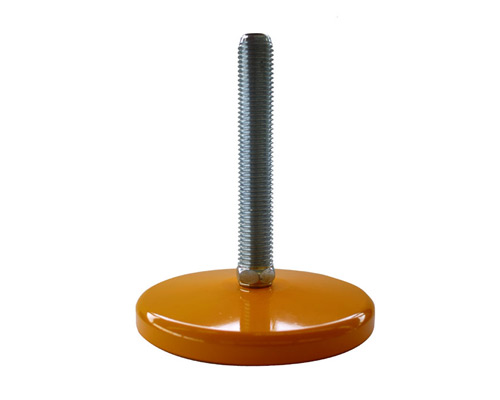

Levelling foot MASSIV Steel, Ø 159 mm, M30 x 225 mm, yellow
Discover the MASSIV Steel Levelling Foot, designed for robust stability with a 159 mm diameter and a 225 mm articulated screw. It handles static loads up to 70,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€45.97*
|
| From 5 |
€44.02*
|
| From 15 |
€42.63*
|
| From 50 |
€42.07*
|
1 on stock, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |
| Hygiene: | No |

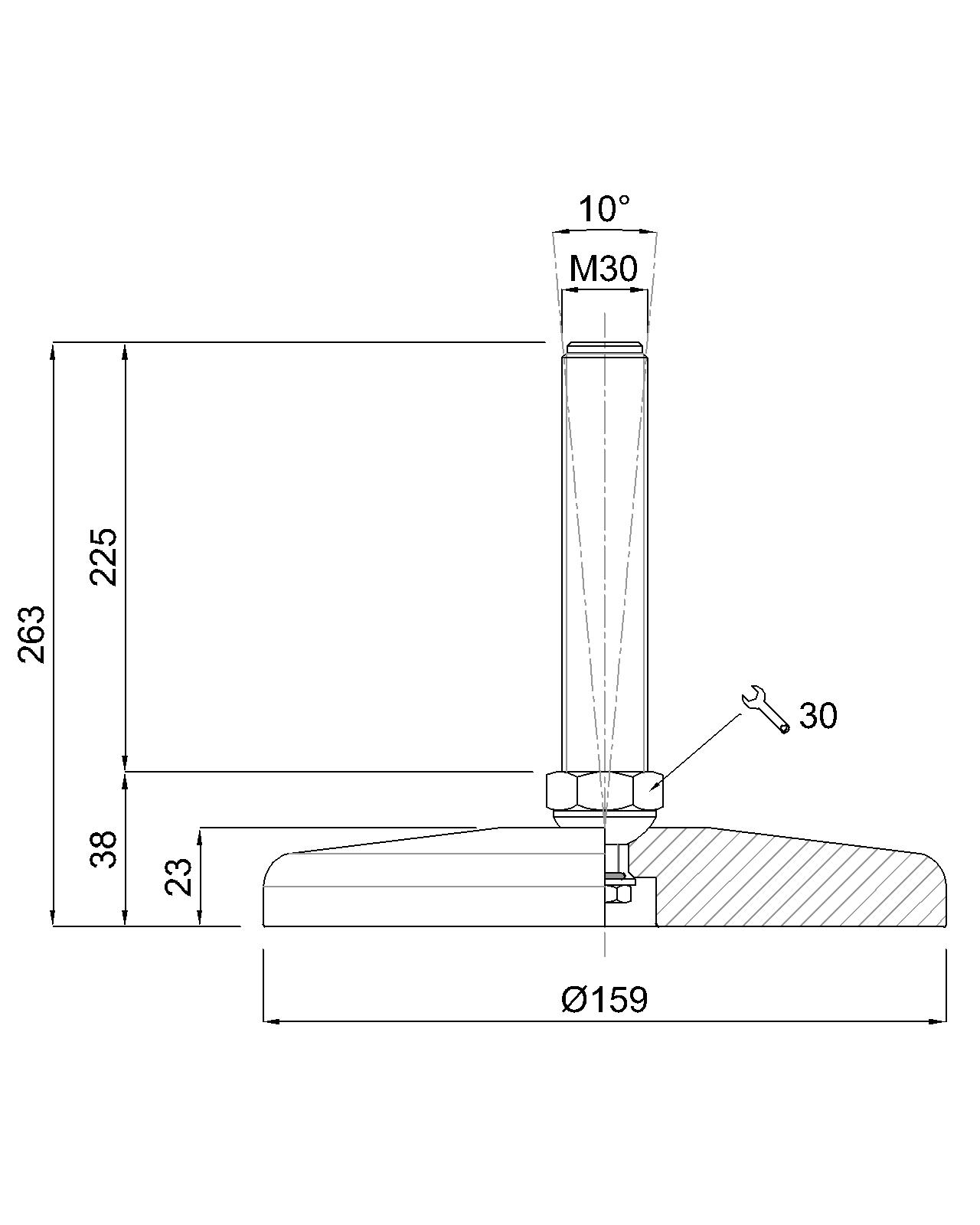

Technical drawing
