Levelling foot MASSIV Steel, Ø 159 mm, M30 x 200 mm, yellow
EAN
4061408103218
Type
45811450/30
Optimize your equipment stability with the MASSIV Steel Levelling Foot. Featuring a robust design, it supports static loads up to 70,000 N, perfect for a range of applications.
| Quantity | Price |
|---|---|
| From 1 |
€45.31*
|
| From 5 |
€43.39*
|
| From 15 |
€42.01*
|
| From 50 |
€41.46*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |

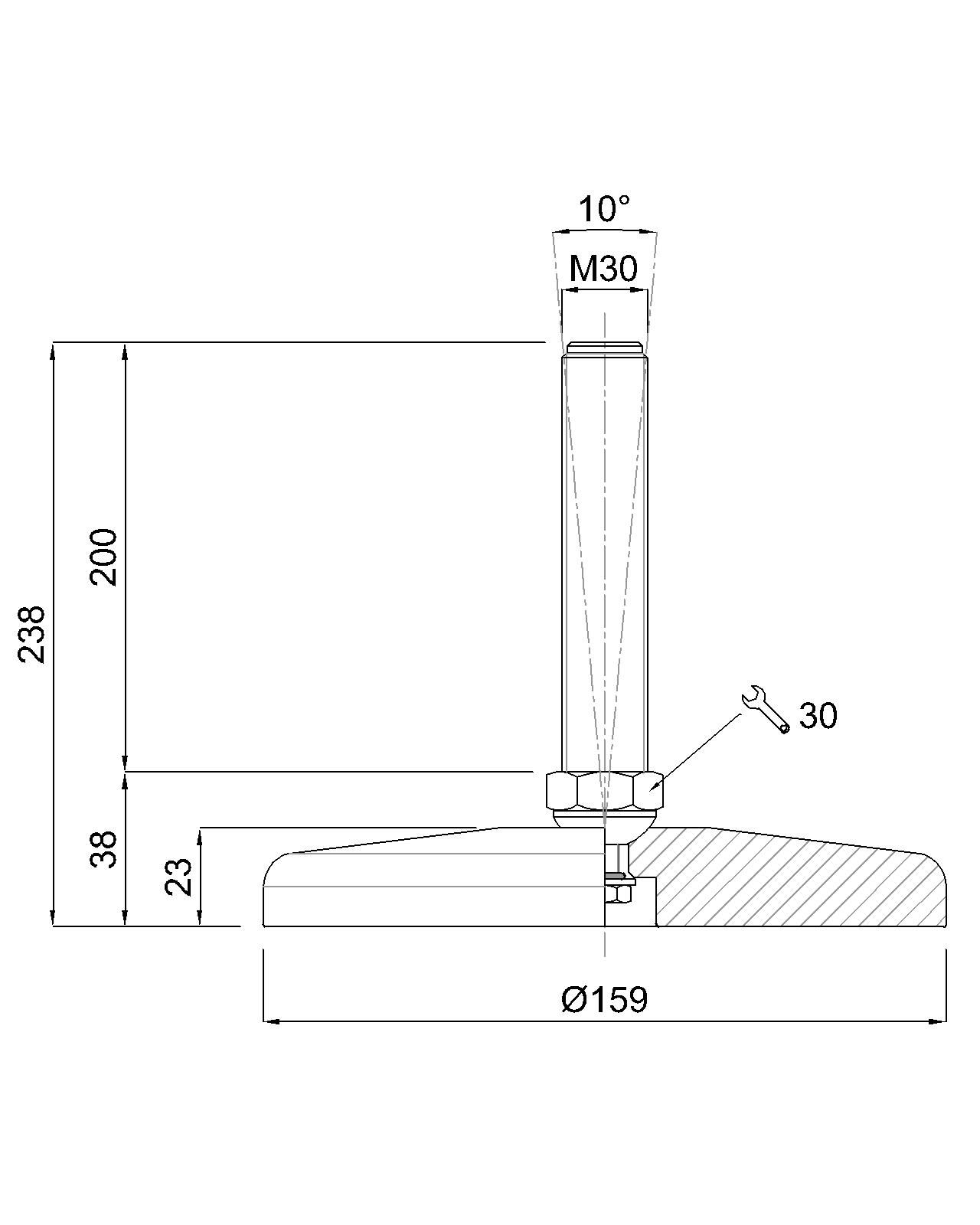

Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M30 x 200 mm, Galvanized steel, Total height 238 mm, Articulated screw 10°, yellow painted, Static load 70.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
