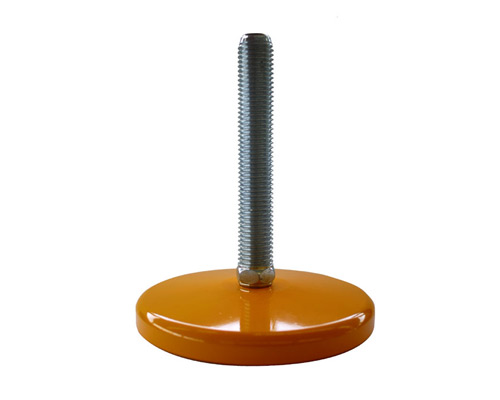

Levelling foot MASSIV Steel, Ø 159 mm, M24 x 100 mm, yellow, NBR
EAN
4061408103188
Type
45811443/24
Enhance stability with the MASSIV Steel leveling foot. Featuring a robust design, 60,000 N static load capacity, and articulated screw for 10° adjustment, ideal for diverse applications.
| Quantity | Price |
|---|---|
| From 1 |
€45.24*
|
| From 5 |
€43.32*
|
| From 15 |
€41.95*
|
| From 50 |
€41.40*
|
4 on stock, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M24 x 100 mm, Galvanized steel, Total height 139 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
