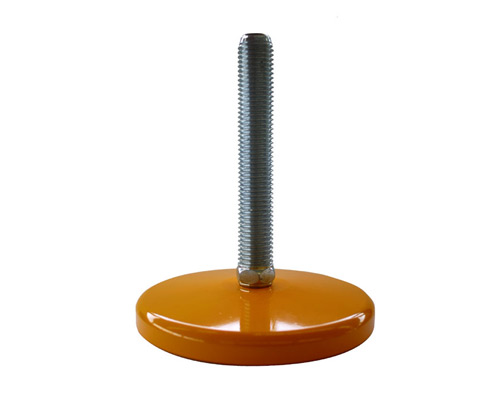

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 225 mm, yellow, NBR
EAN
4061408103157
Type
45811453
The MASSIV Steel Levelling Foot features a robust 159 mm diameter and a static load capacity of 50,000 N. Its articulated screw allows for a 10° adjustment, ensuring stability on uneven surfaces.
| Quantity | Price |
|---|---|
| From 1 |
€45.67*
|
| From 5 |
€43.73*
|
| From 15 |
€42.35*
|
| From 50 |
€41.80*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M20 x 225 mm, Galvanized steel, Total height 264 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 50.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
