Levelling foot MASSIV Steel, Ø 120 mm, M30 x 225 mm, yellow, NBR
EAN
4061408103096
Type
45811405/30
Discover the MASSIV Steel Levelling Foot, designed for robust applications with a 120 mm base, M30 x 225 mm spindle, and 60,000 N static load capacity. Ideal for precise leveling with 10° adjustment and enhanced grip.
| Quantity | Price |
|---|---|
| From 1 |
€35.77*
|
| From 5 |
€34.25*
|
| From 15 |
€33.17*
|
| From 50 |
€32.74*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |

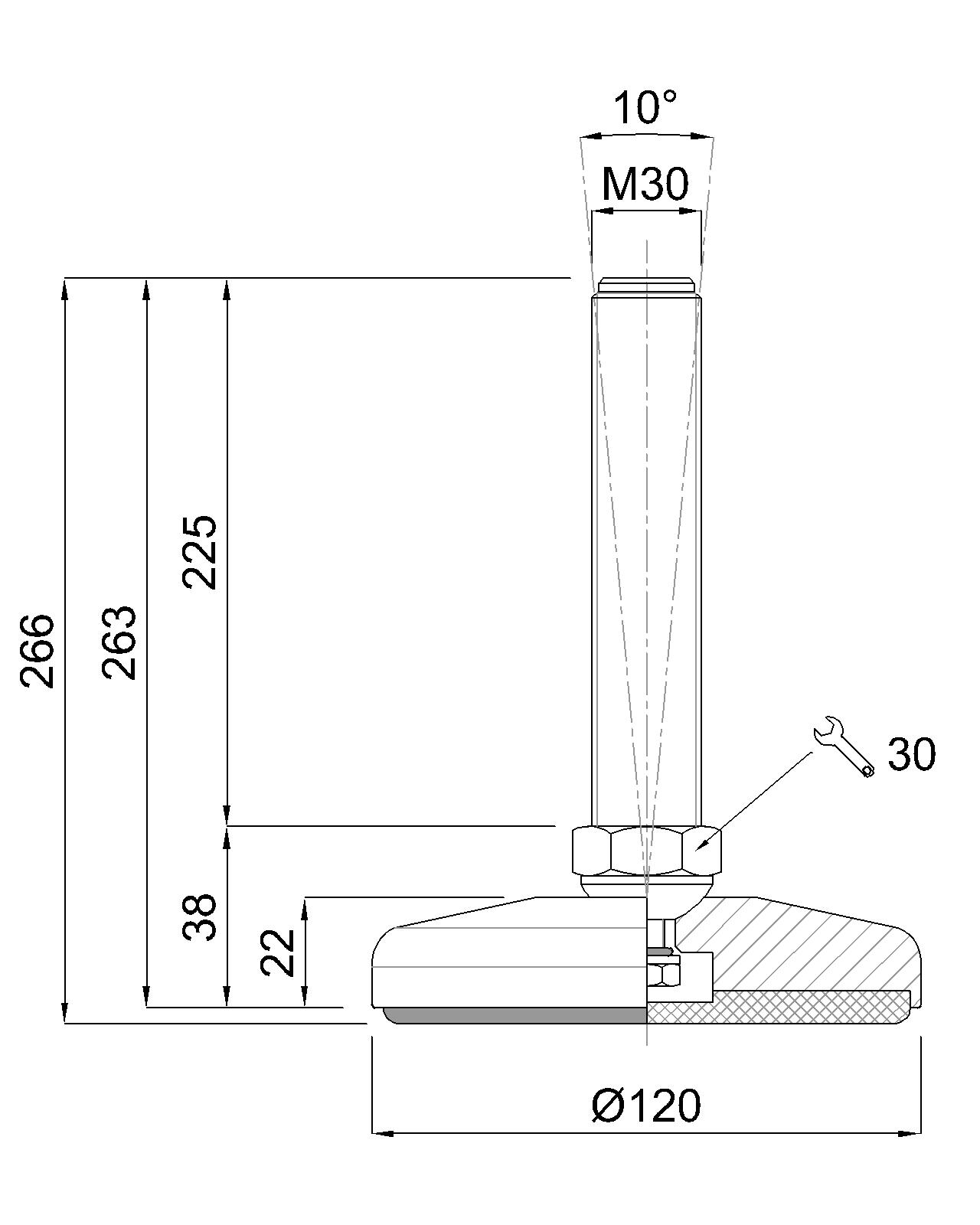

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M30 x 225 mm, Galvanized steel, Total height 266 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
