Levelling foot MASSIV Steel, Ø 120 mm, M30 x 200 mm, yellow, NBR
EAN
4061408103072
Type
45811403/30
Discover the MASSIV Steel Levelling Foot, engineered for high stability with a static load capacity of 60,000 N. Featuring a durable galvanized finish and anti-slip NBR, it ensures reliable performance for your precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€35.43*
|
| From 5 |
€33.92*
|
| From 15 |
€32.85*
|
| From 50 |
€32.42*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |

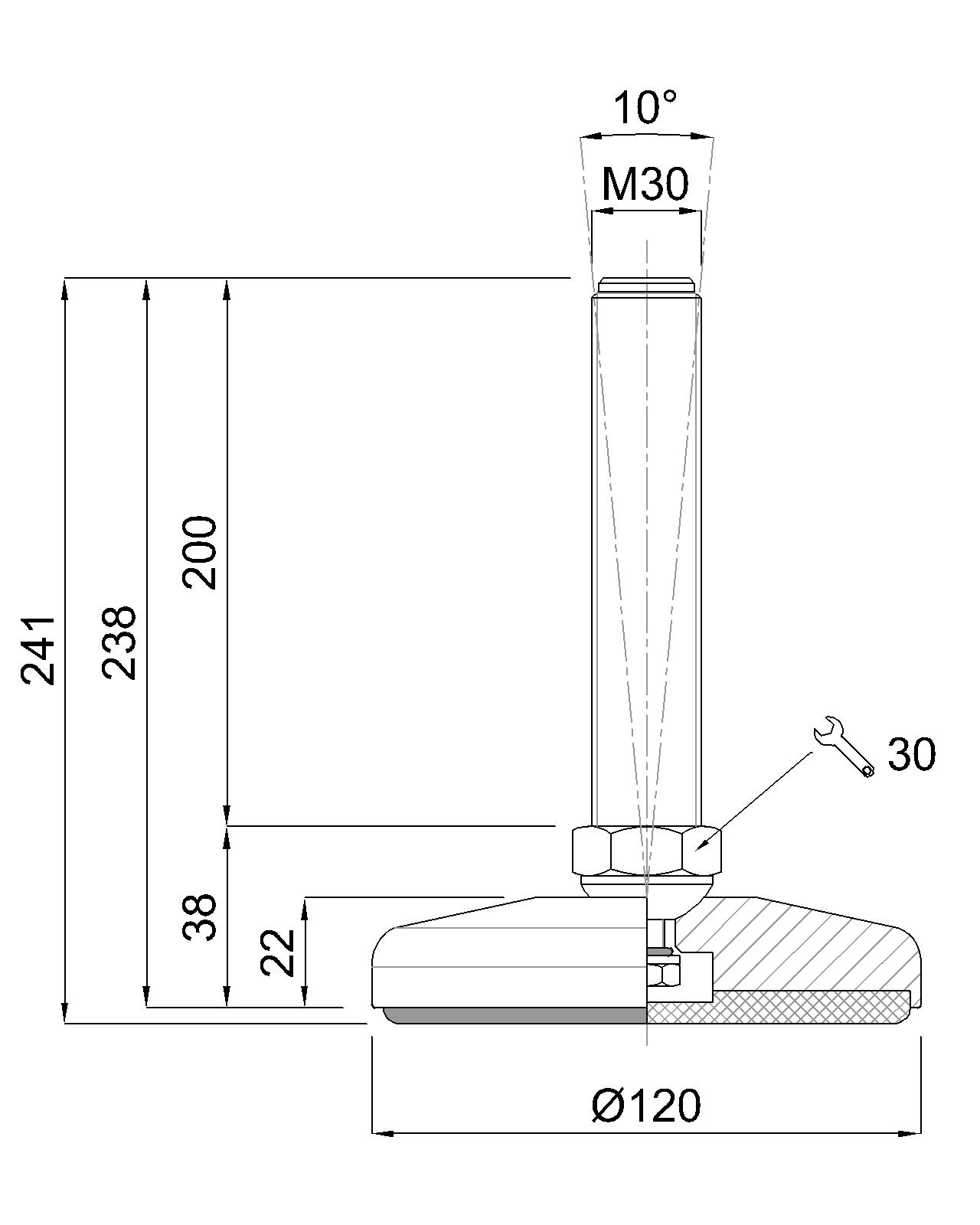

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M30 x 200 mm, Galvanized steel, Total height 241 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
