Levelling foot MASSIV Steel, Ø 120 mm, M30 x 100 mm, yellow
EAN
4061408103065
Type
45811394/30
Introducing the MASSIV Steel Levelling Foot: featuring a durable 120 mm diameter and M30 x 100 mm specifications, it effortlessly supports static loads up to 60,000 N with a 10° articulated adjustment. Designed for precision and stability in demanding engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€32.67*
|
| From 5 |
€31.28*
|
| From 15 |
€30.29*
|
| From 50 |
€29.90*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

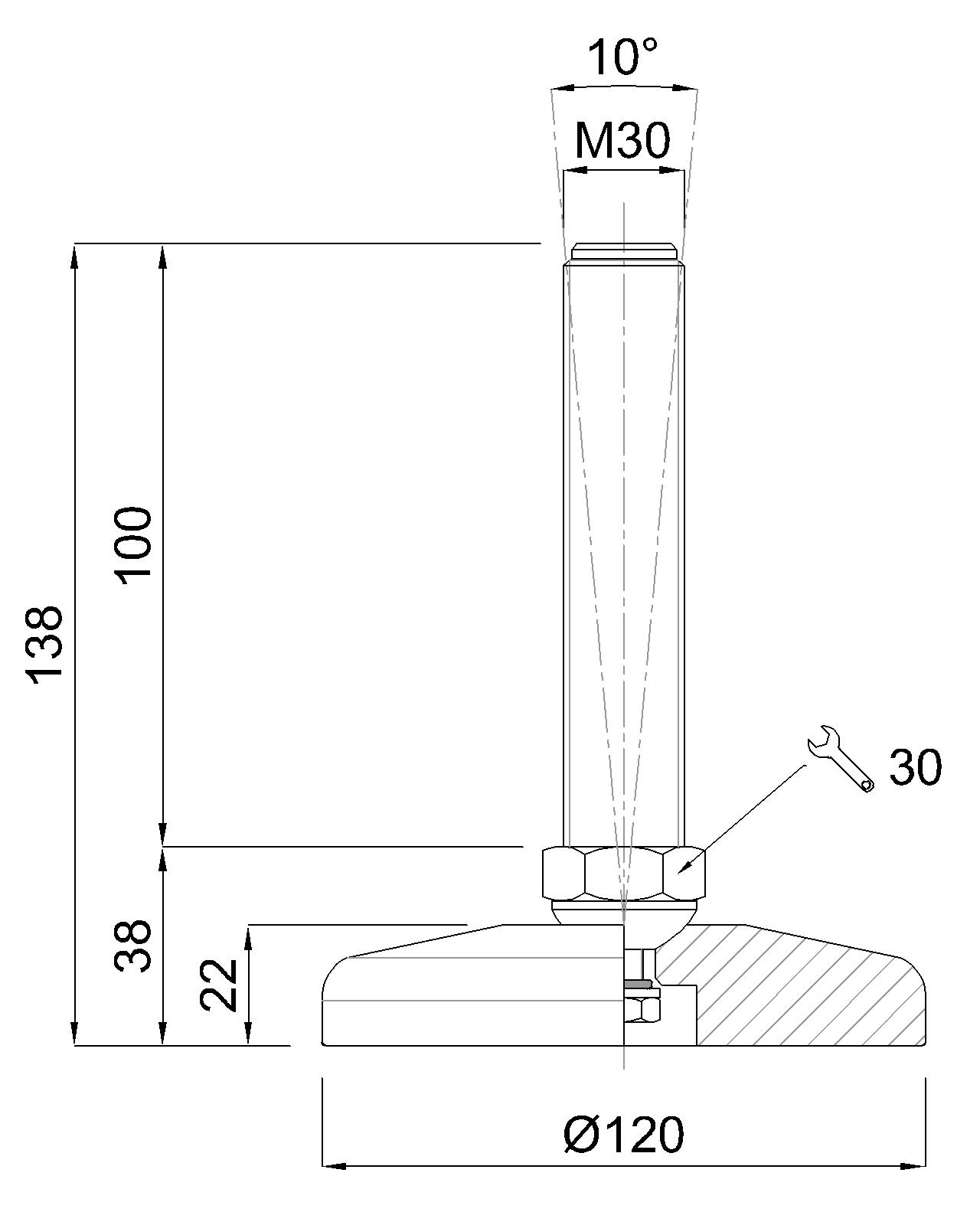

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M30 x 100 mm, Galvanized steel, Total height 138 mm, Articulated screw 10°, yellow painted, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
