Levelling foot MASSIV Steel, Ø 120 mm, M20 x 100 mm, yellow
EAN
4061408103003
Type
45811394
Optimize your machinery stability with the MASSIV Steel Levelling Foot. Featuring a robust design with a 120 mm diameter, 45,000 N load capacity, and 10° articulation, it ensures precise alignment and durability.
| Quantity | Price |
|---|---|
| From 1 |
€31.42*
|
| From 5 |
€30.08*
|
| From 15 |
€29.13*
|
| From 50 |
€28.75*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

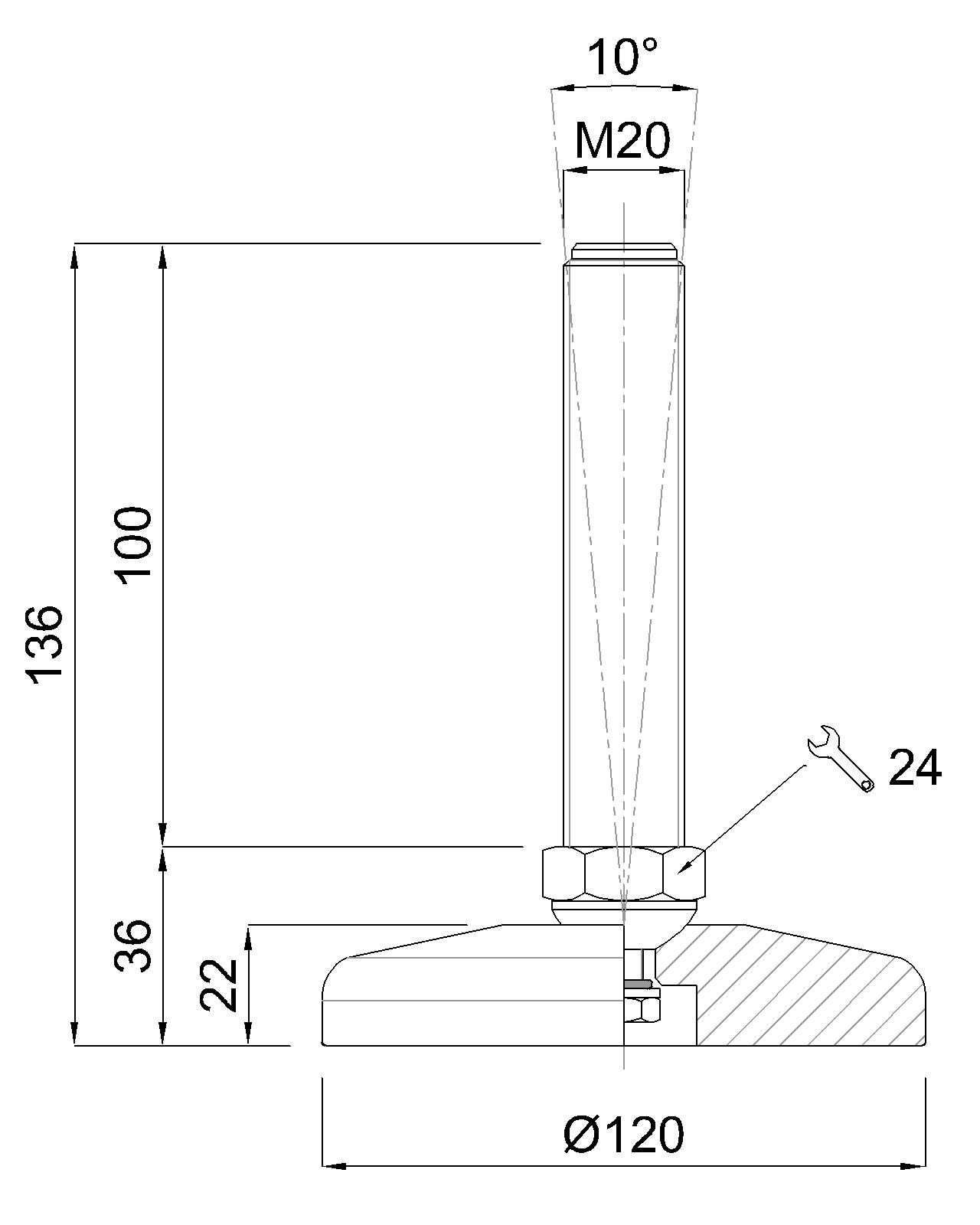

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M20 x 100 mm, Galvanized steel, Total height 136 mm, Articulated screw 10°, yellow painted, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
