Levelling foot MASSIV Steel, Ø 120 mm, M20 x 100 mm, yellow, NBR
EAN
4061408102990
Type
45811395
Introducing the MASSIV Steel Levelling Foot: engineered for robustness with a 120 mm diameter, accommodating static loads up to 45,000 N. Features a 10° articulated screw for precise leveling and anti-slip NBR for enhanced stability.
| Quantity | Price |
|---|---|
| From 1 |
€32.95*
|
| From 5 |
€31.55*
|
| From 15 |
€30.55*
|
| From 50 |
€30.15*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |

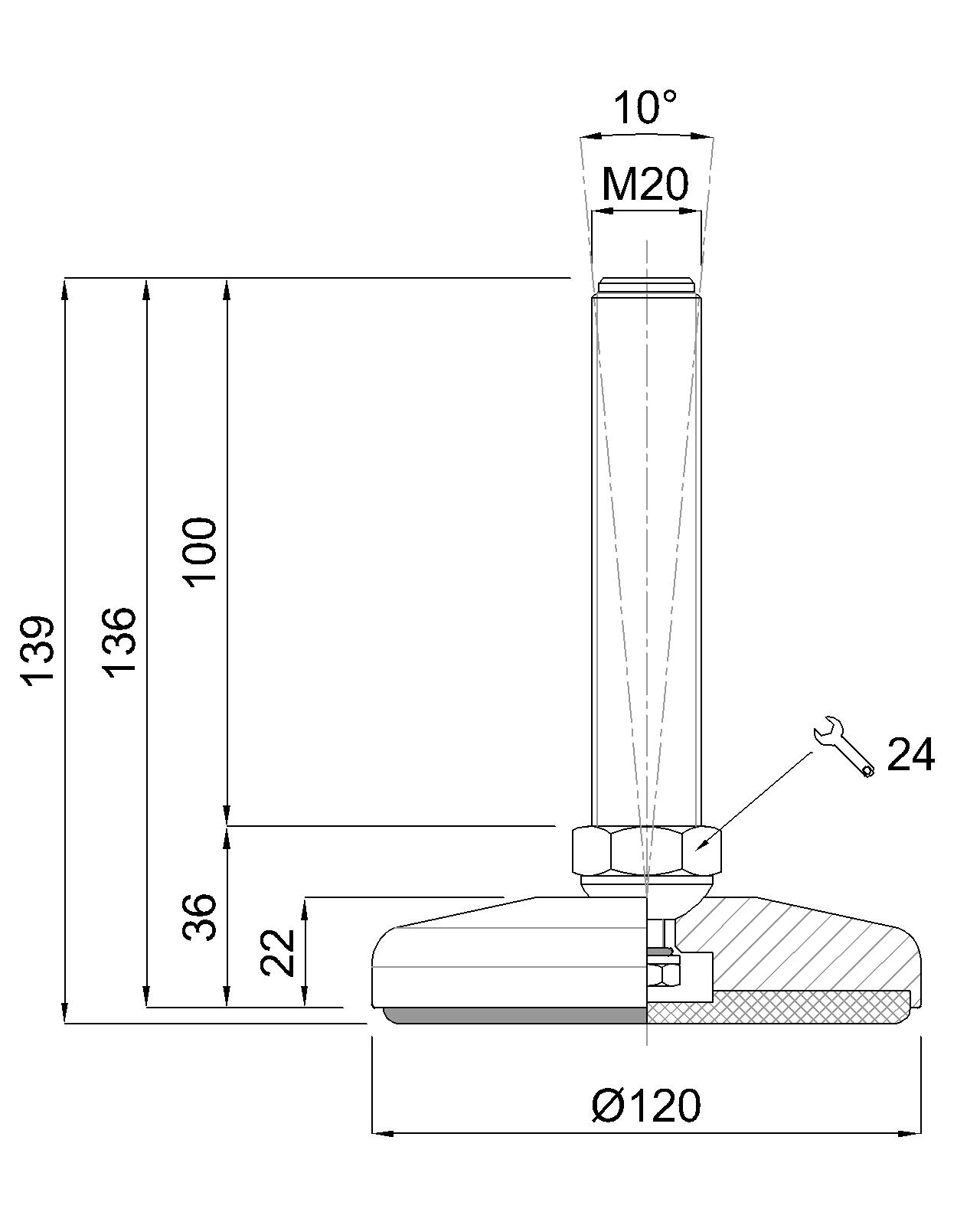

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M20 x 100 mm, Galvanized steel, Total height 139 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
