Levelling foot MASSIV Steel, Ø 120 mm, M20 x 150 mm, yellow
EAN
4061408102983
Type
45811398
Discover the MASSIV Steel levelling foot, featuring a robust 120 mm diameter and a 150 mm articulated screw, engineered for static loads up to 45,000 N. Durable and precision-crafted for optimal stability.
| Quantity | Price |
|---|---|
| From 1 |
€32.09*
|
| From 5 |
€30.73*
|
| From 15 |
€29.76*
|
| From 50 |
€29.37*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

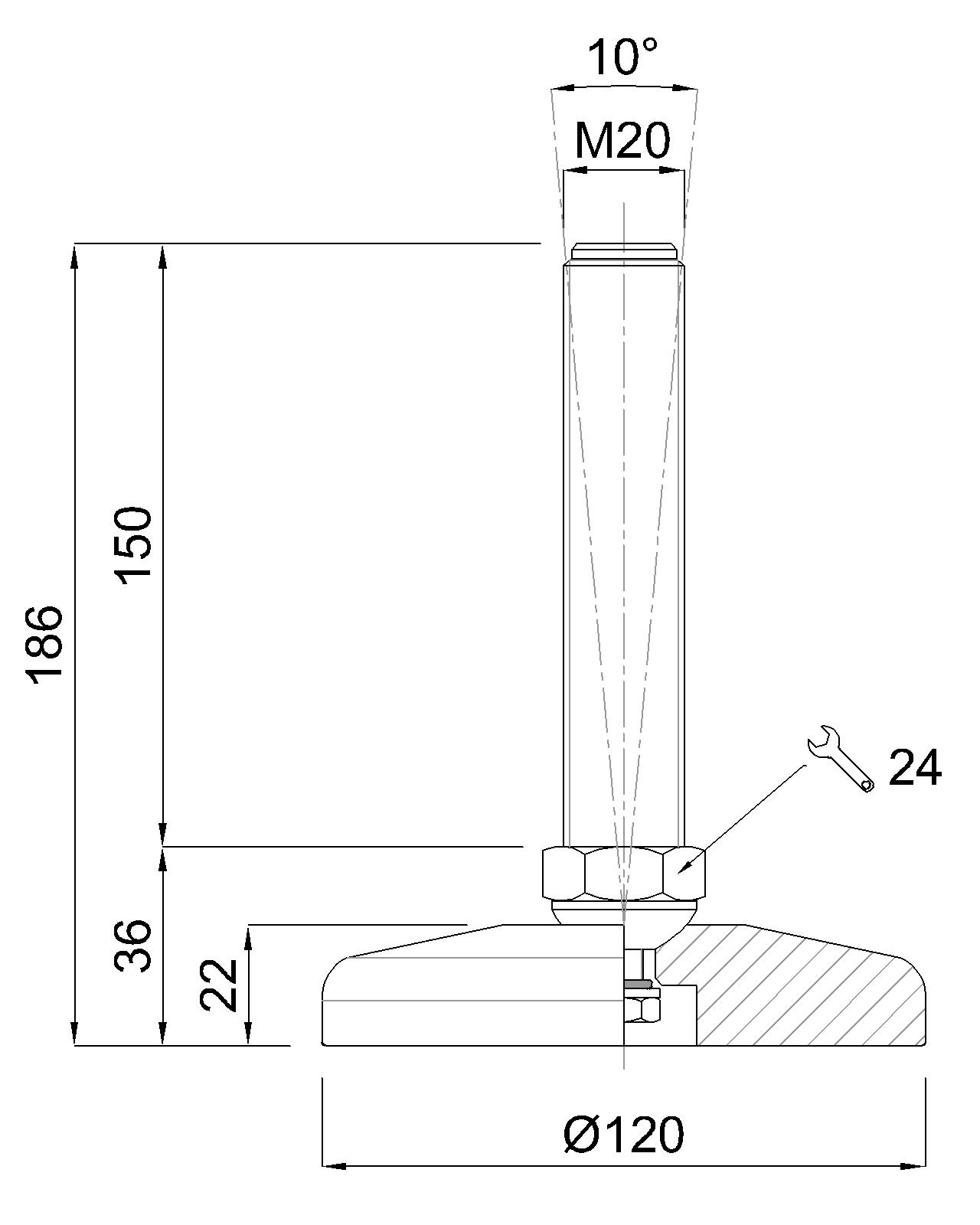

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M20 x 150 mm, Galvanized steel, Total height 186 mm, Articulated screw 10°, yellow painted, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
