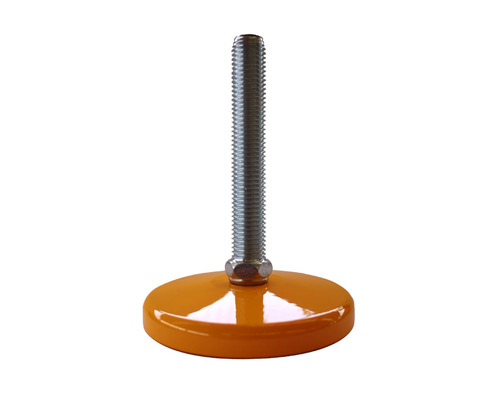

Levelling foot MASSIV Steel, Ø 120 mm, M20 x 150 mm, yellow, NBR
EAN
4061408102976
Type
45811399
Discover the MASSIV Steel Leveling Foot, designed for maximum stability with a static load capacity of 45,000 N. Featuring a durable galvanized finish and an articulated screw for robust adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€33.63*
|
| From 5 |
€32.20*
|
| From 15 |
€31.18*
|
| From 50 |
€30.77*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |

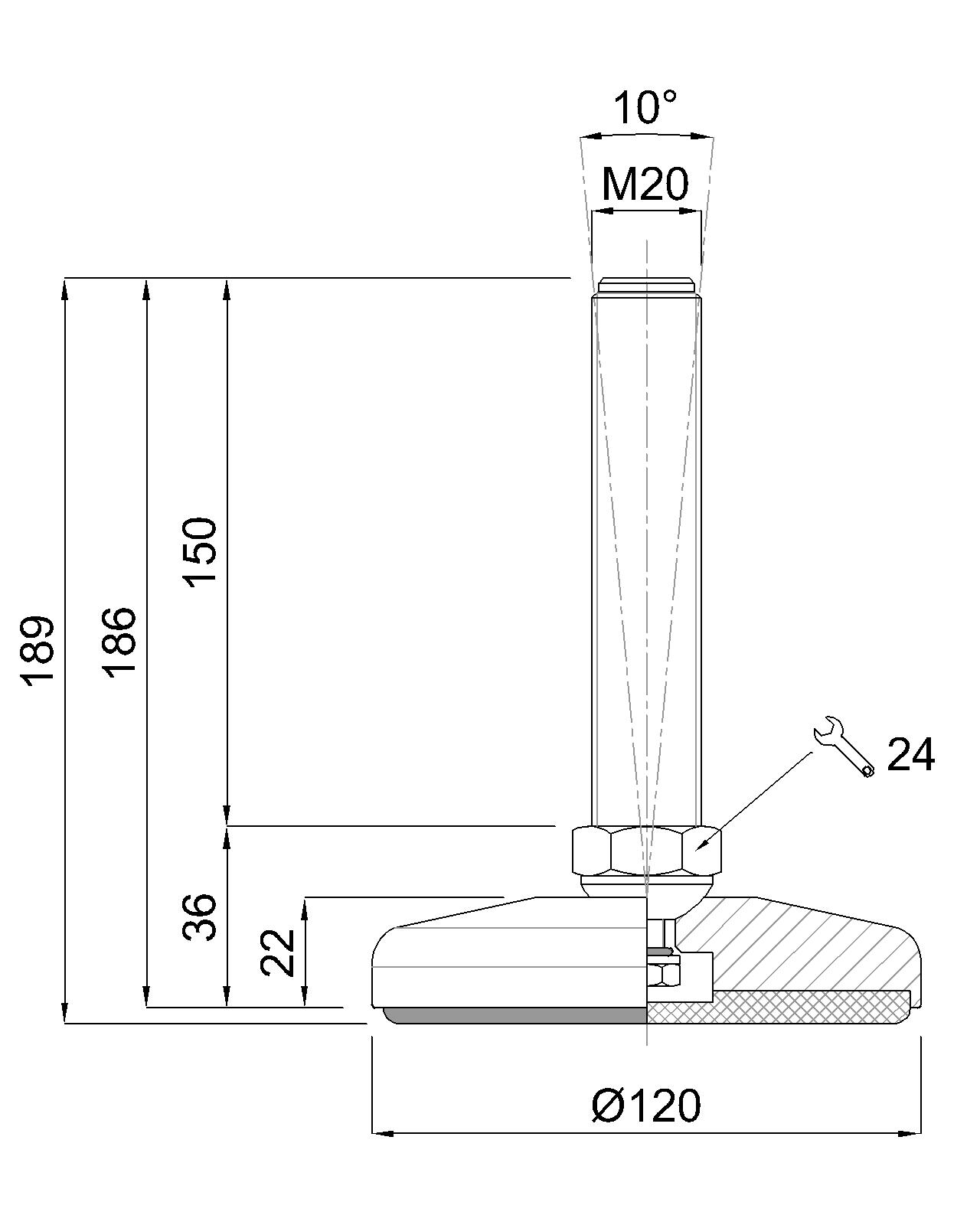

Technical drawing
Levelling foot MASSIV Steel, Ø 120 mm, M20 x 150 mm, Galvanized steel, Total height 189 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
